Deanie Power Station - Tailrace![]()

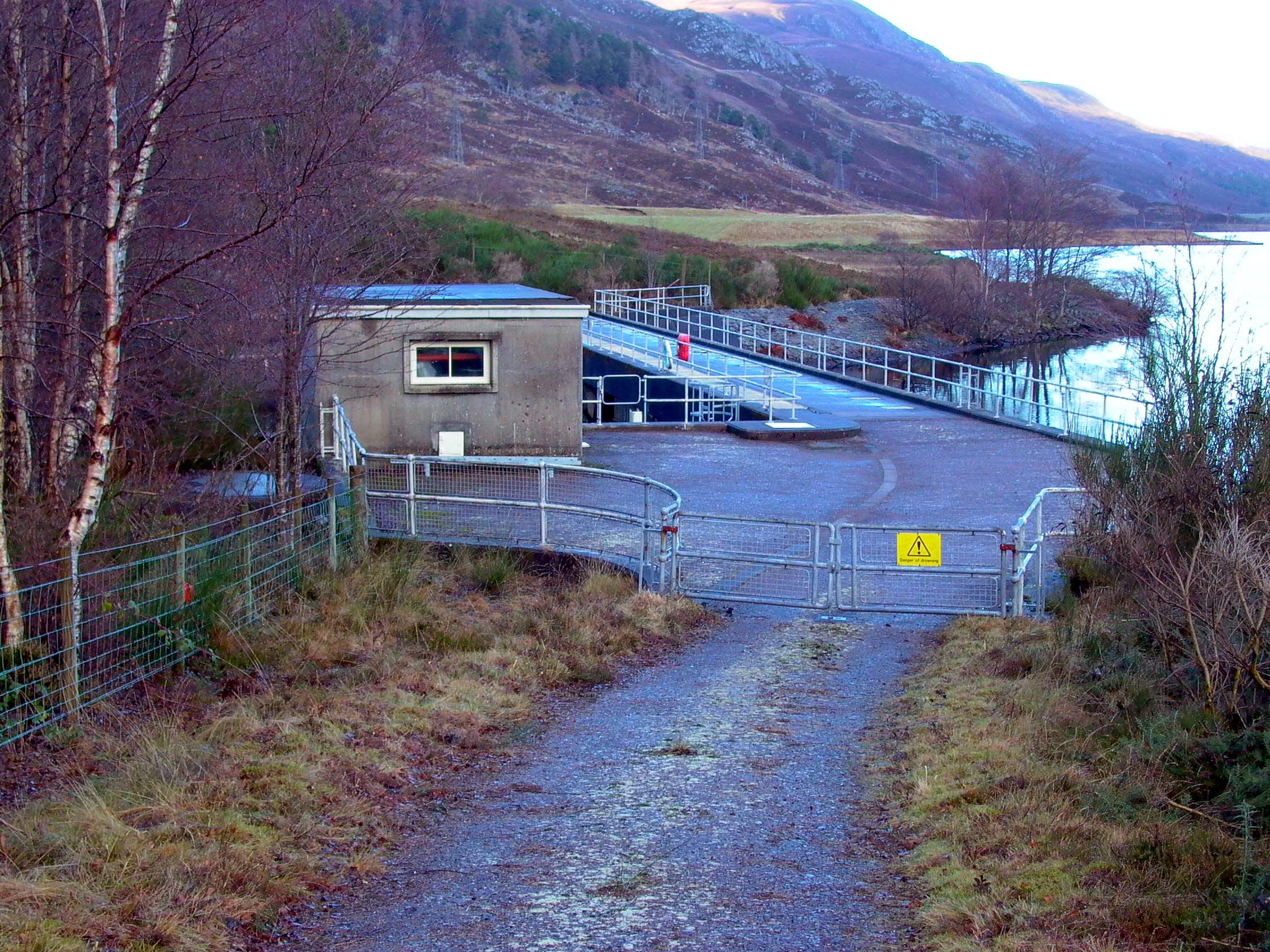

Photo by: Mike Ross The bridge structure in the above picture has the stoplog grooves, where
stoplogs can be inserted (to cut the tailrace off from the loch, and allow
the tunnel to be dewatered for maintenance), and an electric fish screen.
Looking towards the tailrace itself, all that is visible is a pool of swirling
water; the tailrace tunnel outlet is underwater: Photo by: Mike Ross Contrast the above pictures with these archive shots of the tailrace under
construction. The tunnel outlet is clearly visible, as is the underwater
flow-spreader structure: Photo by: Scanned by Mike Ross, from 'Water Power' February 1964 A more general view of the tailrace and screen bridge: Photo by: Scanned by Mike Ross, from 'Water Power' February 1964 Home Page Last updated 5th March 2003 Style © 1998-2001 Subterranea Britannica Words and images © 2003 Michael J. Ross |
