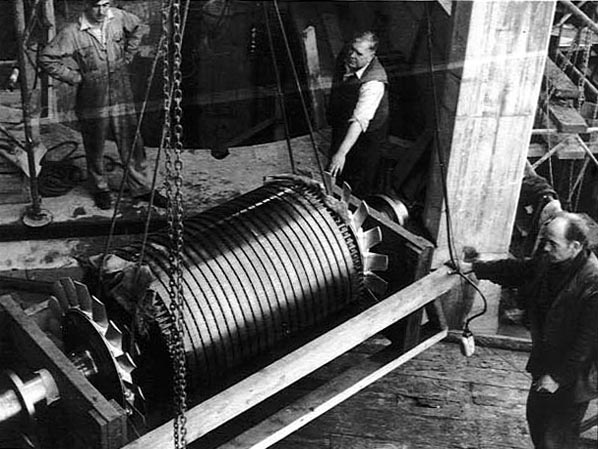

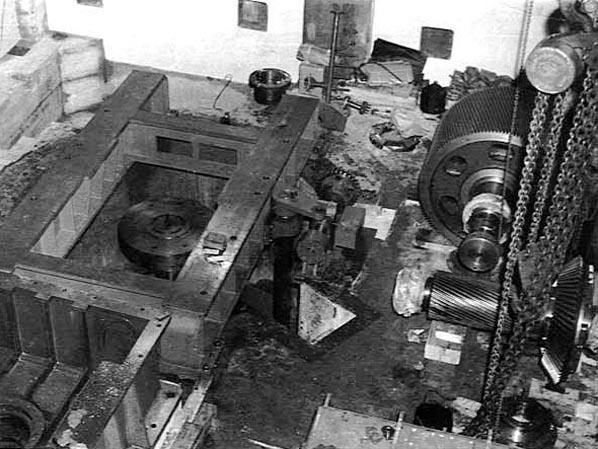

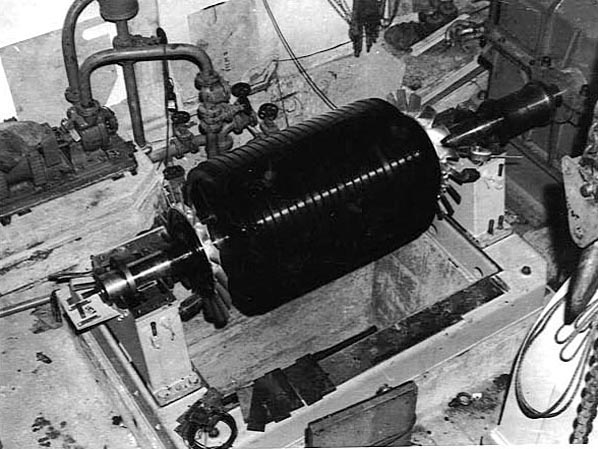

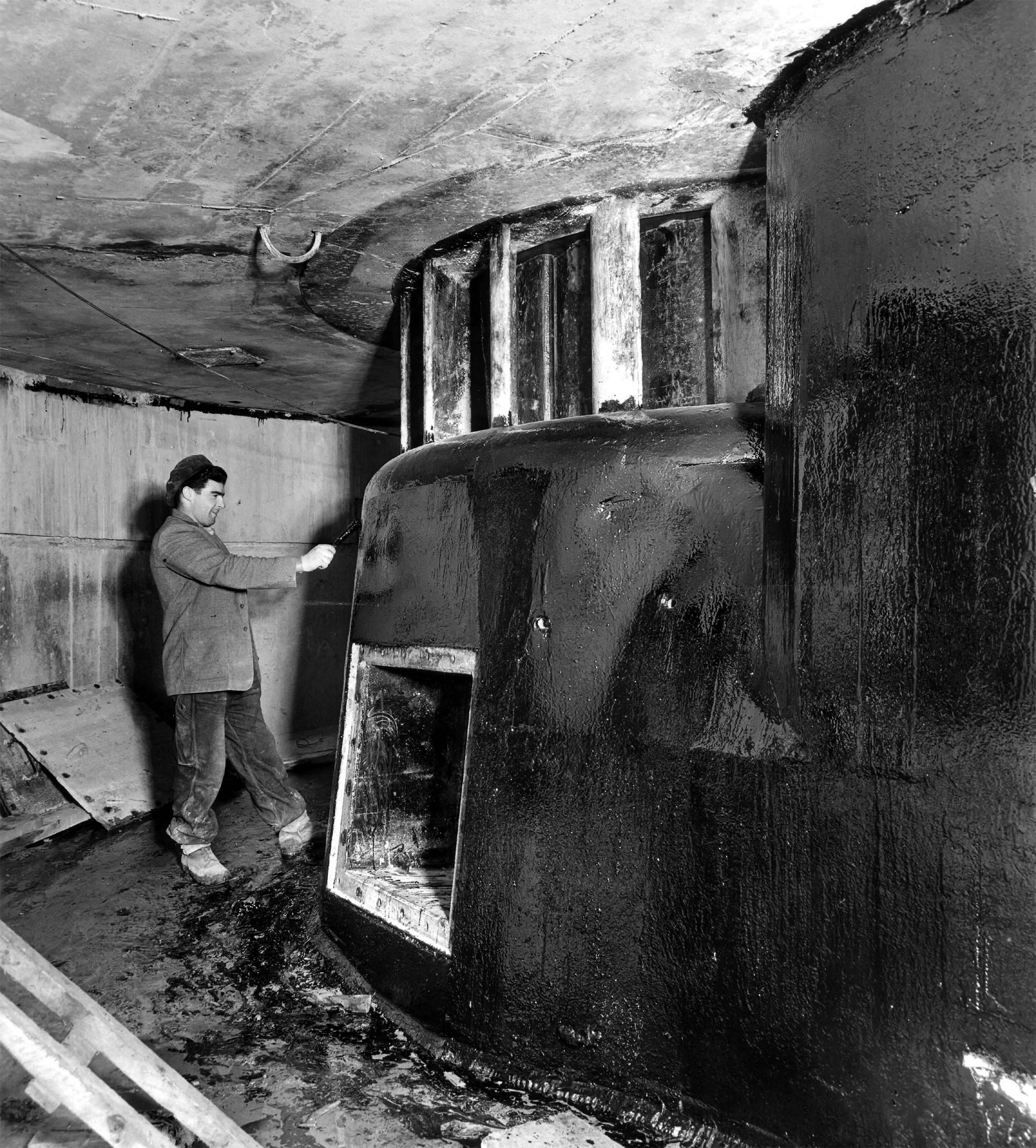

Mullardoch Dam & Power Station - archive photosAssembly of the turbine & gearbox: Photo: Mullardoch power stationPhoto by: Unknown Immediately below the floor in the above picture, a worker applies a protective coating to the concrete in the turbine spiral casing. Note the plate giving access to the draft tube has been removed. Guide vanes in the upper centre. Obviously, this area is normally full of water. Photo: Mullardoch power stationPhoto by: NOSHEB Archives / Reed & Mallik The gearbox at a later stage of assembly... Photo: Mullardoch power stationPhoto by: Unknown ...and now connected to the generator rotor. Photo: Mullardoch power stationPhoto by: Unknown Preparing to lower the generator stator cover down the shaft.... Photo: Mullardoch power stationPhoto by: Unknown ...following the generator rotor. Photo: Mullardoch power stationPhoto by: Unknown Home Page Last updated 8th May 2004 Style © 1998-2001 Subterranea Britannica Words and images © 2004 Michael J. Ross |
