Nant Power Station - Surge pond

Nant Power Station sign

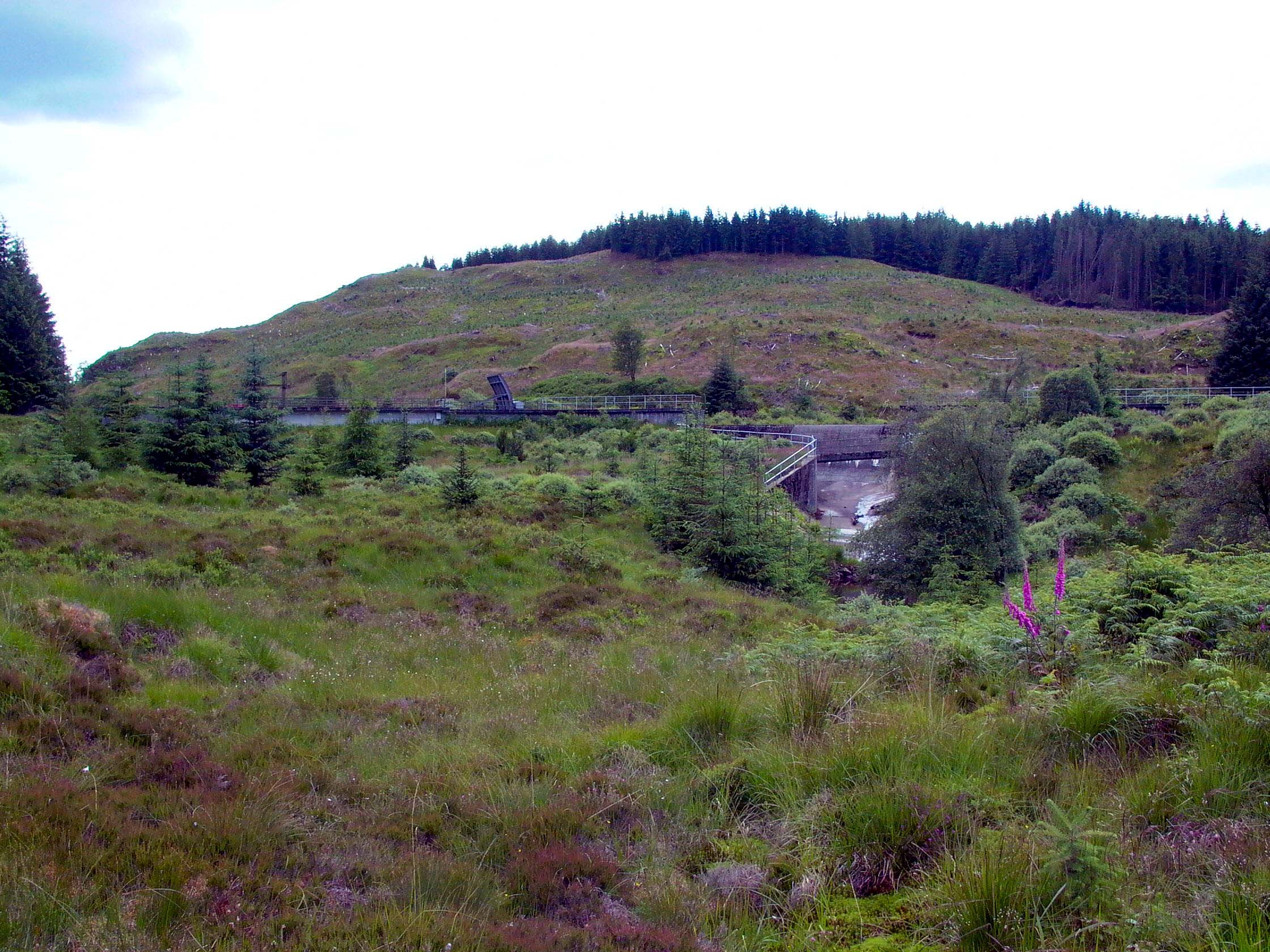

Rising from the end of the low-pressure tunnel fom Loch Nant is the surge chamber; A slope shaft, 140ft long, 14ft in diameter, sloping at 60, rising to a surge pond on the surface. The surge pond is in the middle of heavily forested hill country, accessed up forestry roads:

Nant power station - surge pond

Photo: Nant power station - Surge pond
Photo by: Mike Ross

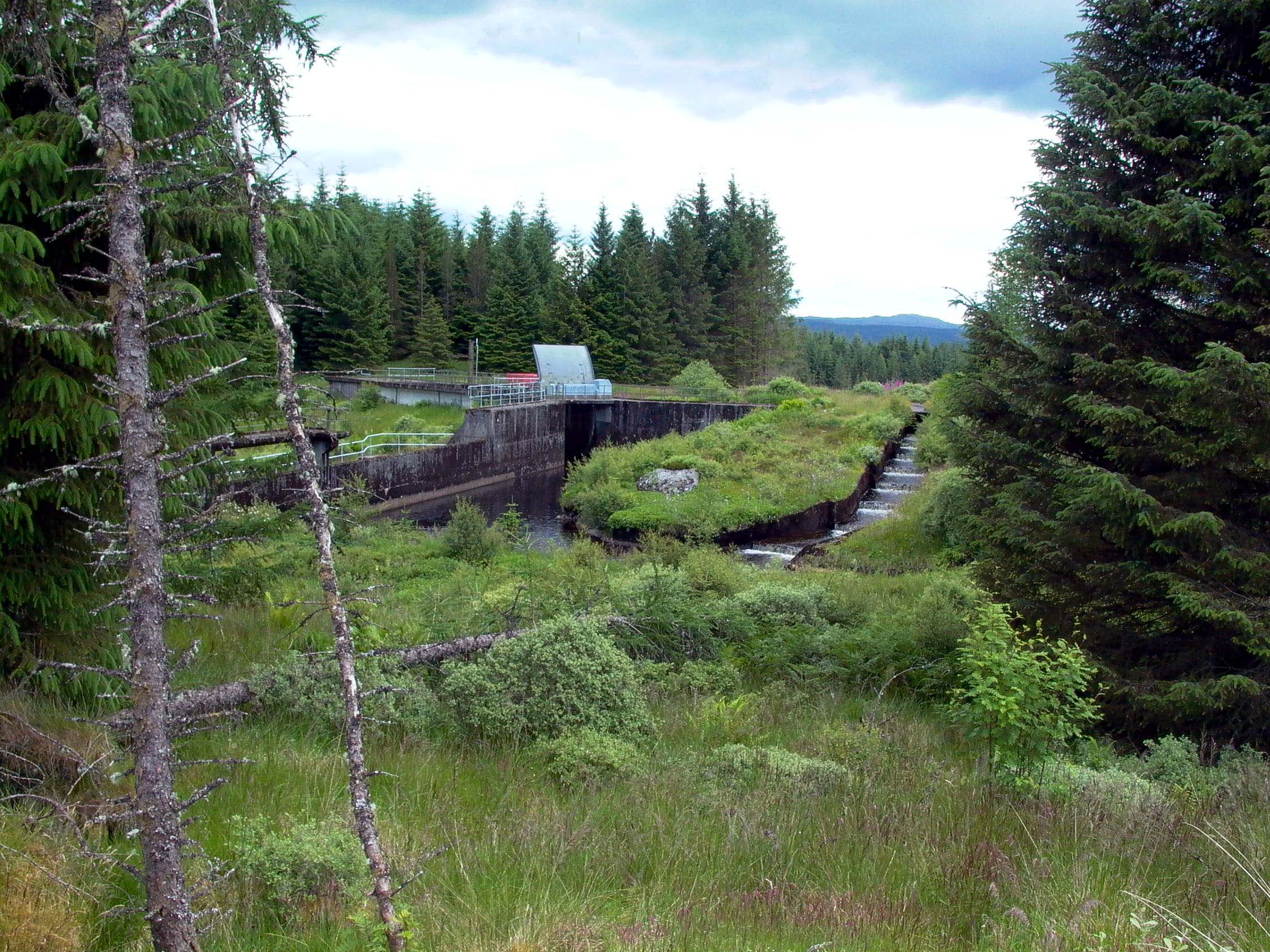

The surge pond also receives the discharge from the Fionain aqueduct system, seen here entering the surge pond via a series of 'steps'

Nant power station - surge pond, Fionain aqueduct

Photo: Nant power station - surge pond, Fionain aqueduct
Photo by: Mike Ross

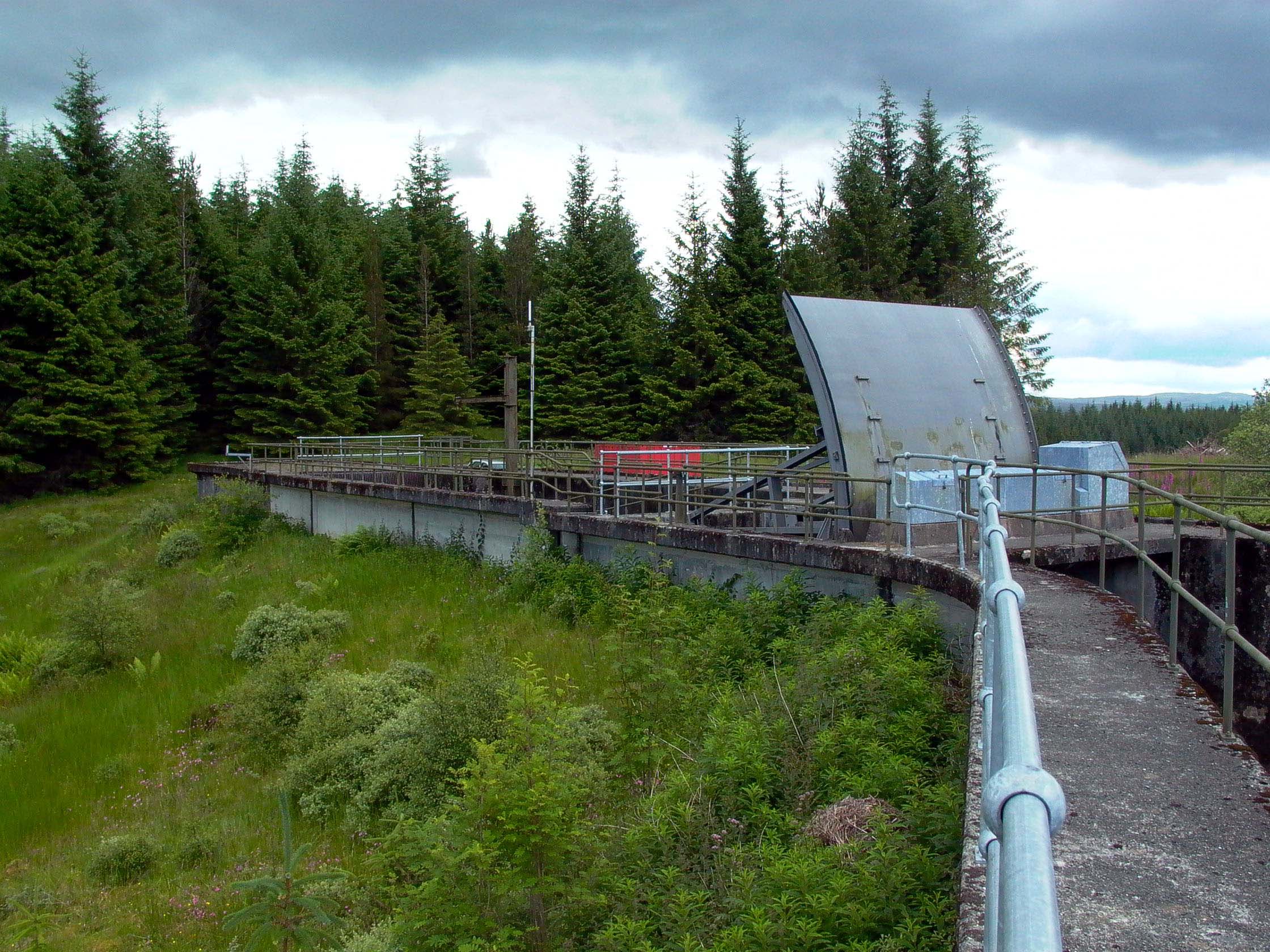

At the top of the slope shaft is a sector gate, to close off the flow from the aqueduct from entering the surge shaft, when it is dewatered for maintenance

Nant power station - Surge pond, sector gate

Photo: Nant power station - surge pond, sector gate
Photo by: Mike Ross

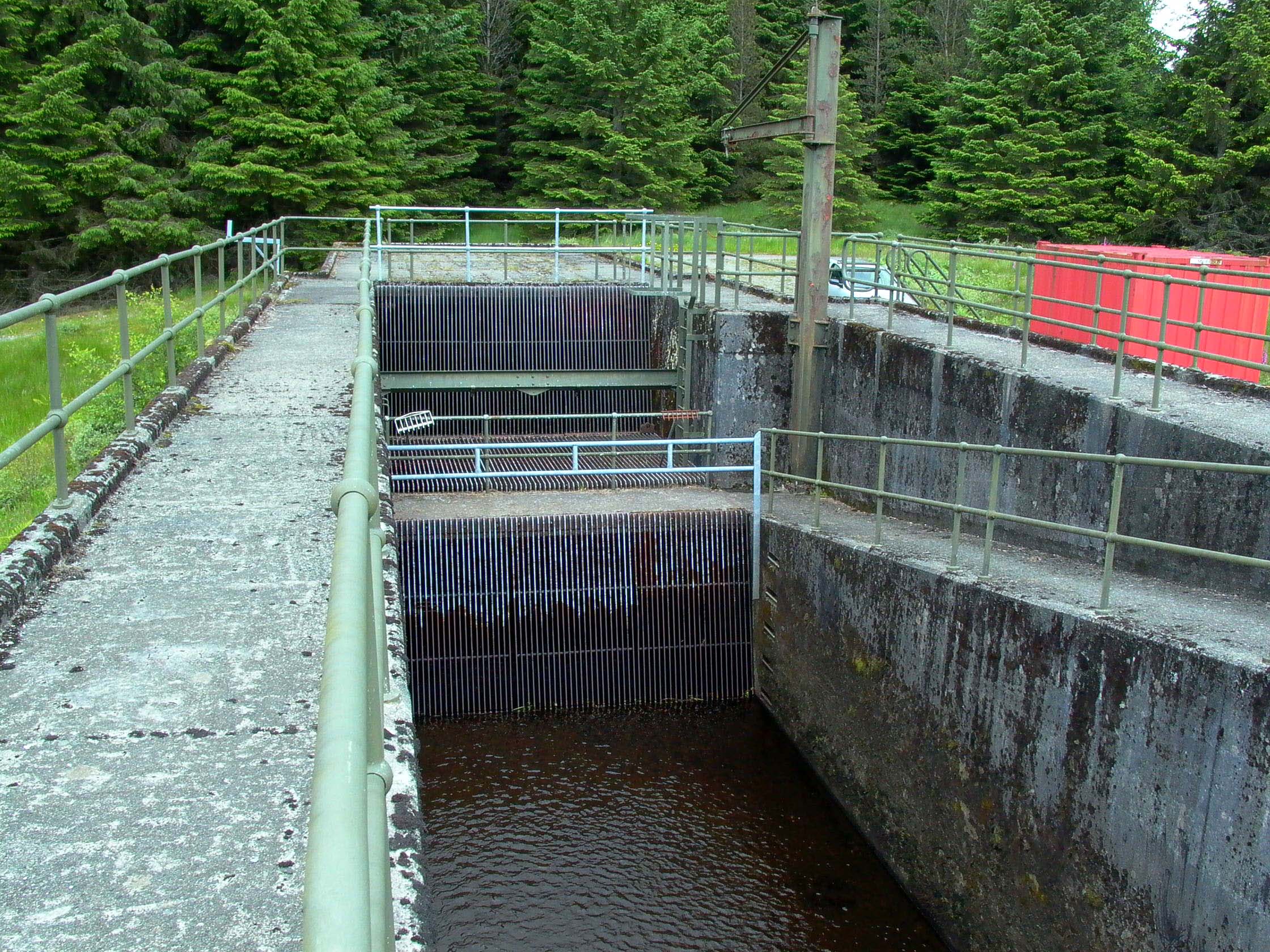

Beyond the sector gate, the top of the shaft is guarded by screens.

Nant power station - Surge pond, screens

Photo: Nant power station - surge pond, screens
Photo by: Mike Ross


Looking through the screen bars, the Fionain water falls a short distance; the foam is the top of the water column in the surge shaft.

Nant power station - Surge pond, top of shaft

Photo: Nant power station - surge pond, top of shaft
Photo by: Mike Ross

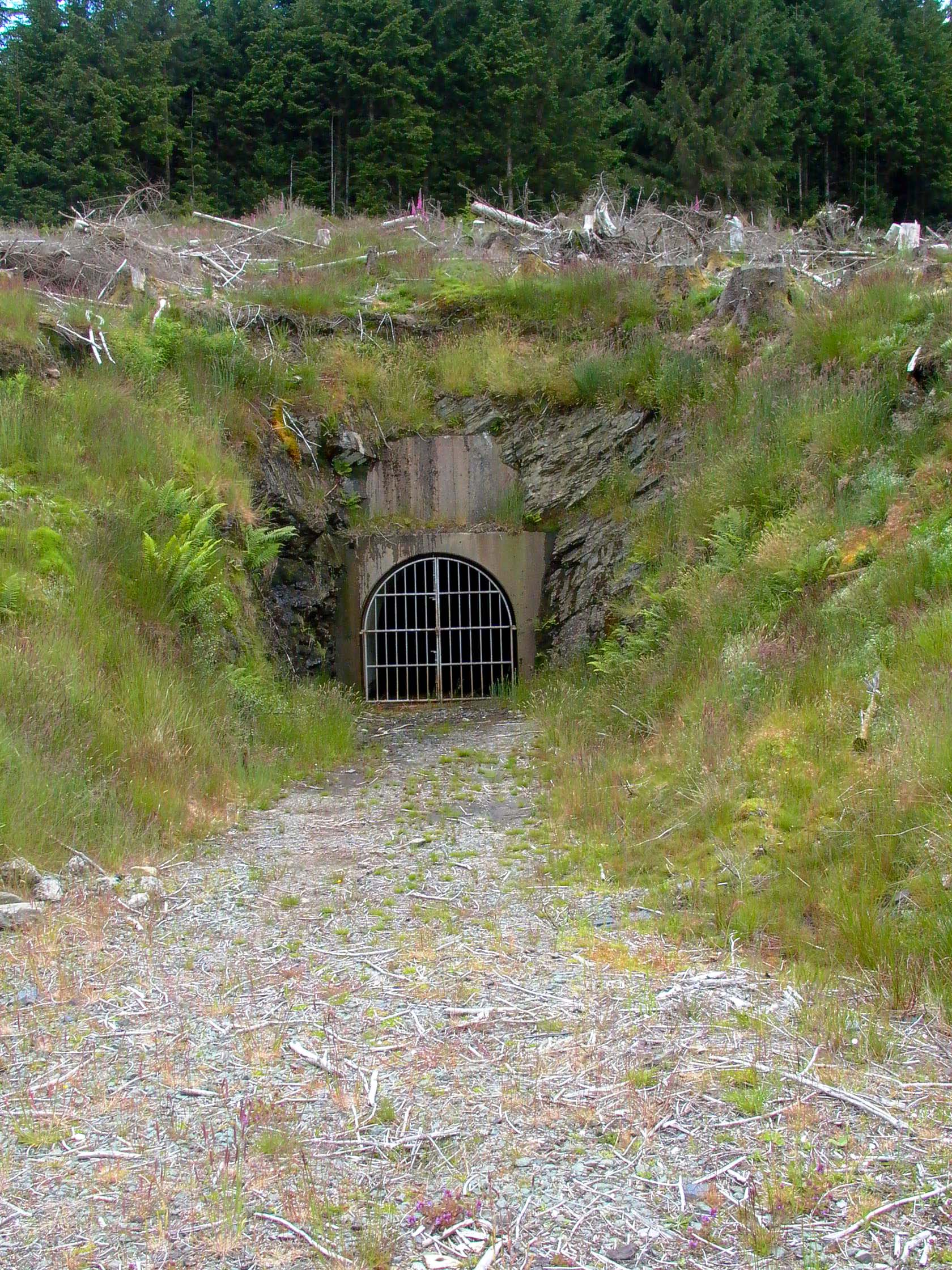

A couple of hundred yards down the hill from the surge pond is the adit. This was the main constuction adit for the shafts and tunnels, and is still used for access and inspection when the system is dewatered. It will enter the system somwhere in the region of the bottom of the surge shaft.

Nant power station - upstream adit

Photo: Nant power station - upstream adit
Photo by: Mike Ross
