St. Fillans Power Station - Surge ShaftOS Grid Ref: NN 69045 2460 St. Fillans is a very 'vertical' kind of scheme; at the end of the low-pressure
tunnel from Lednock is a surge shaft, 200ft high, and below it is a vertical
pressure shaft over 600ft deep, taking the water to the power station.
The surge shaft also acts as an intake for the substantial inflow of water

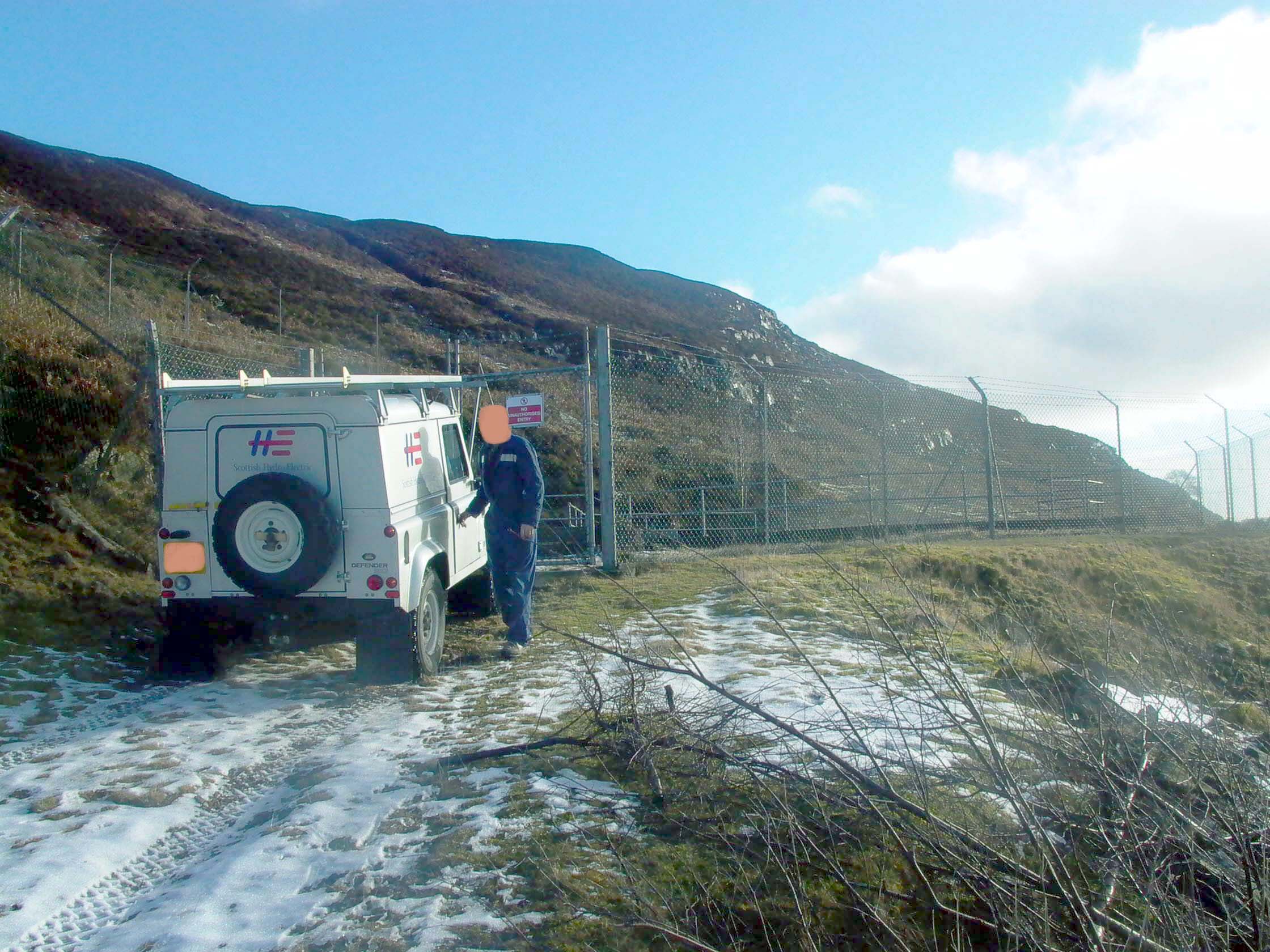

from the catchment on the North side of Loch Earn. Photo by: Mike Ross Inside the fence. A loud roar, a mist of water hangs in the air, and an

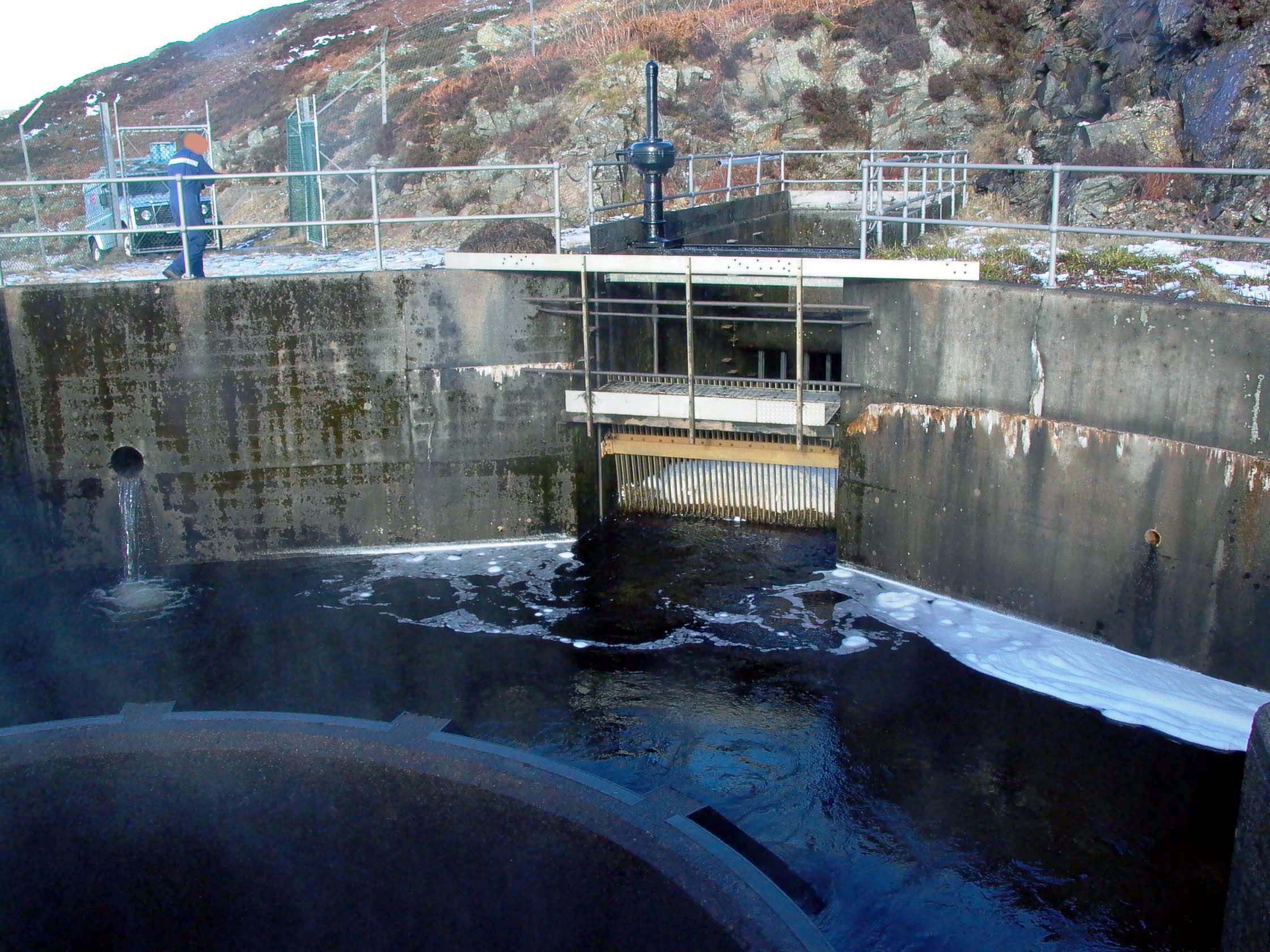

unconventional surge shaft: Photo by: Mike Ross Looking at the bottom left of the above pic, the water flows out from the

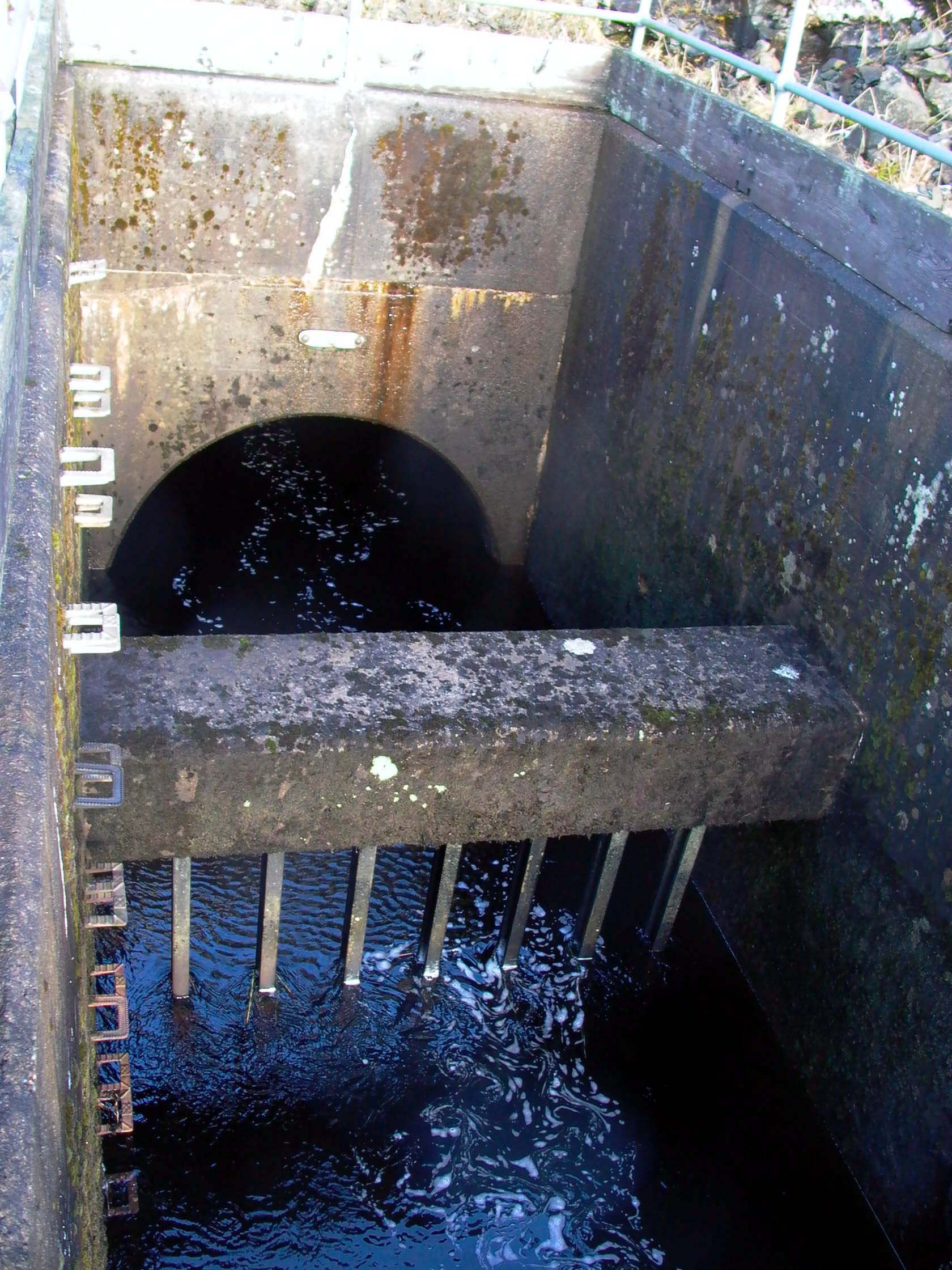

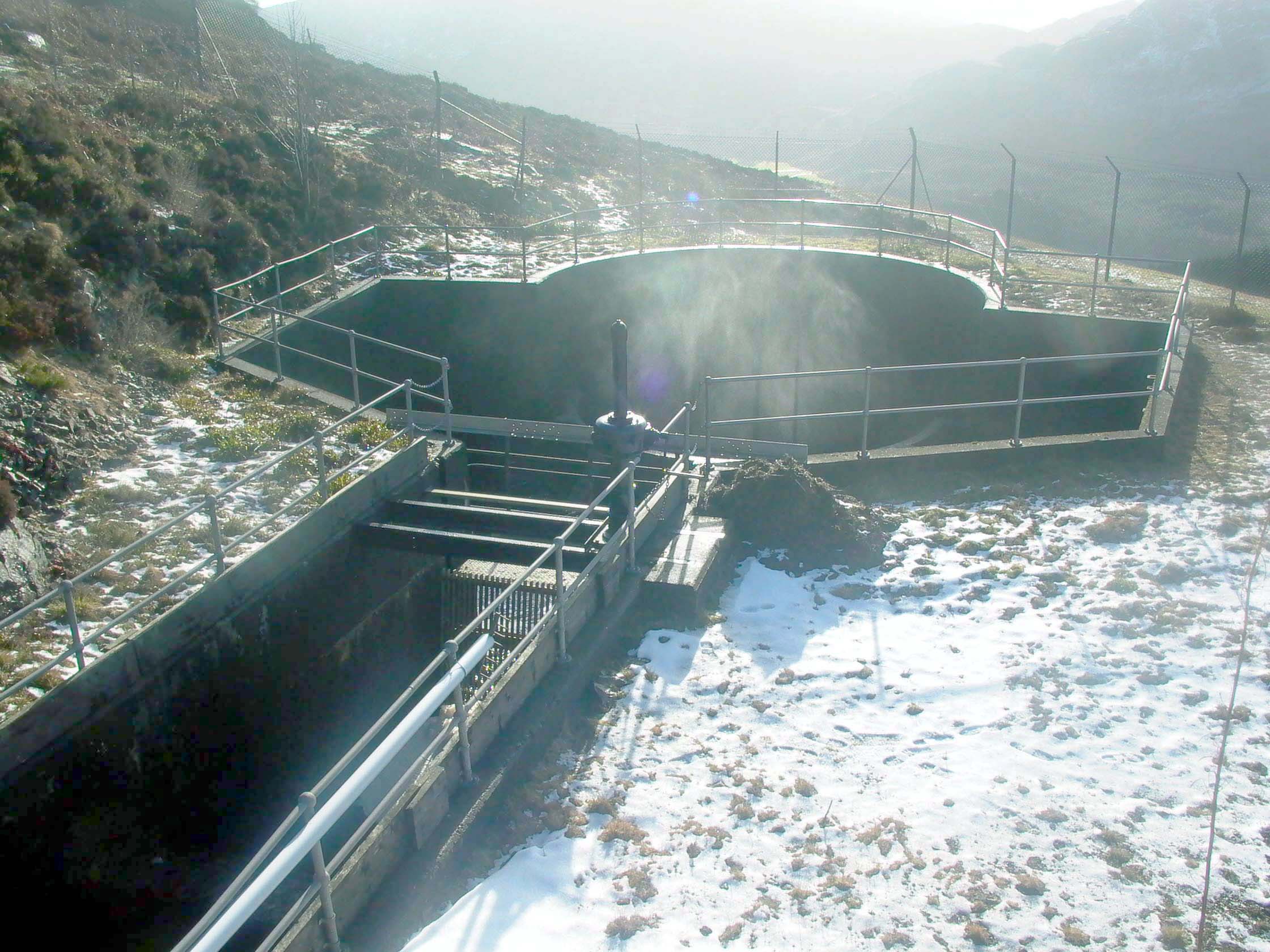

portal of the North Lochearn catchment tunnel: Photo by: Mike Ross The water flows thorugh a screen, with grooves for stoplogs, and into a
small pond at the head of the shaft: Photo by: Mike Ross The North Lochearn catchment tunnel has a small place in history; in 1956,
in this tunnel, was established a new world record for the greatest advance
in a single week - 557ft. This picture, taken from almost the same viewpoint

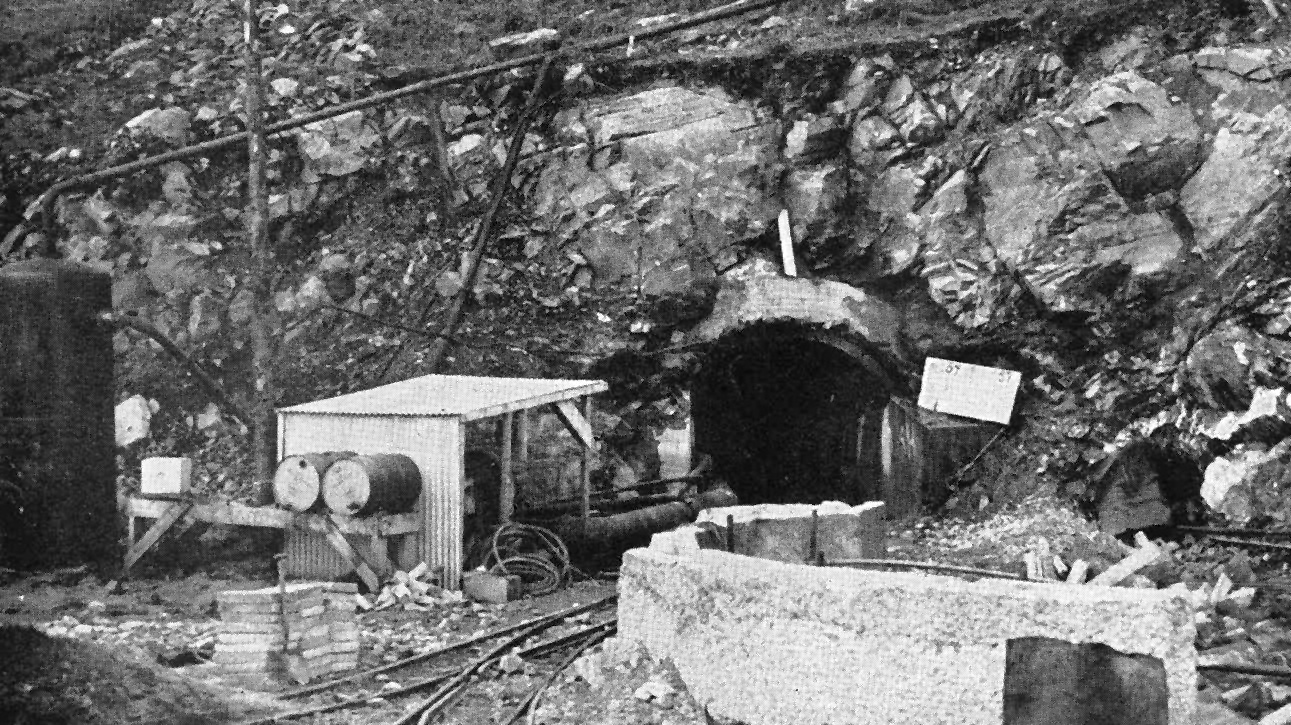

as the above picture, shows this record-breaking tunnel under construction: Photo by: Scanned by Mike Ross, from Water Power, January 1956 From the pond at the head of the surge shaft, the water passes through

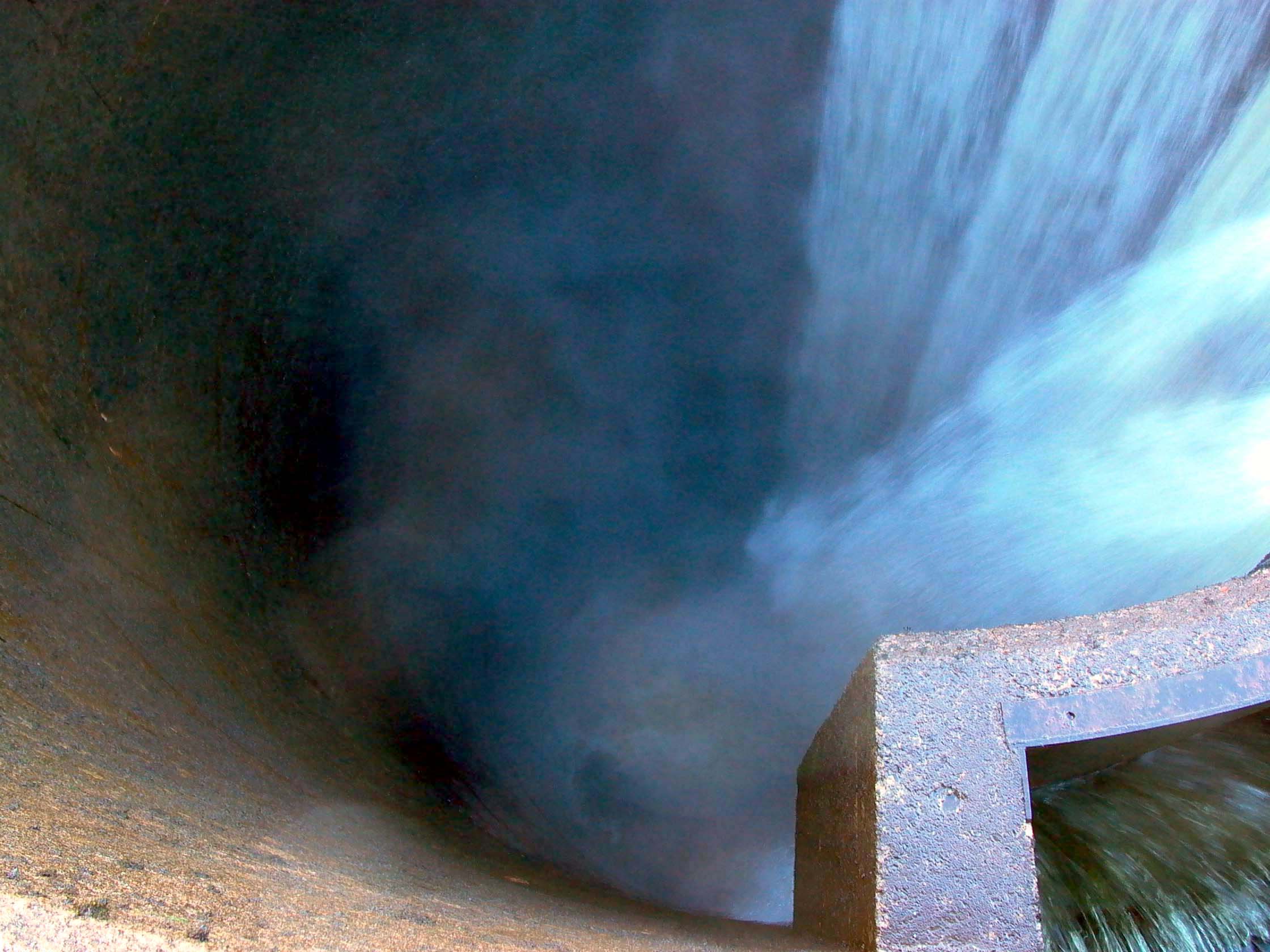

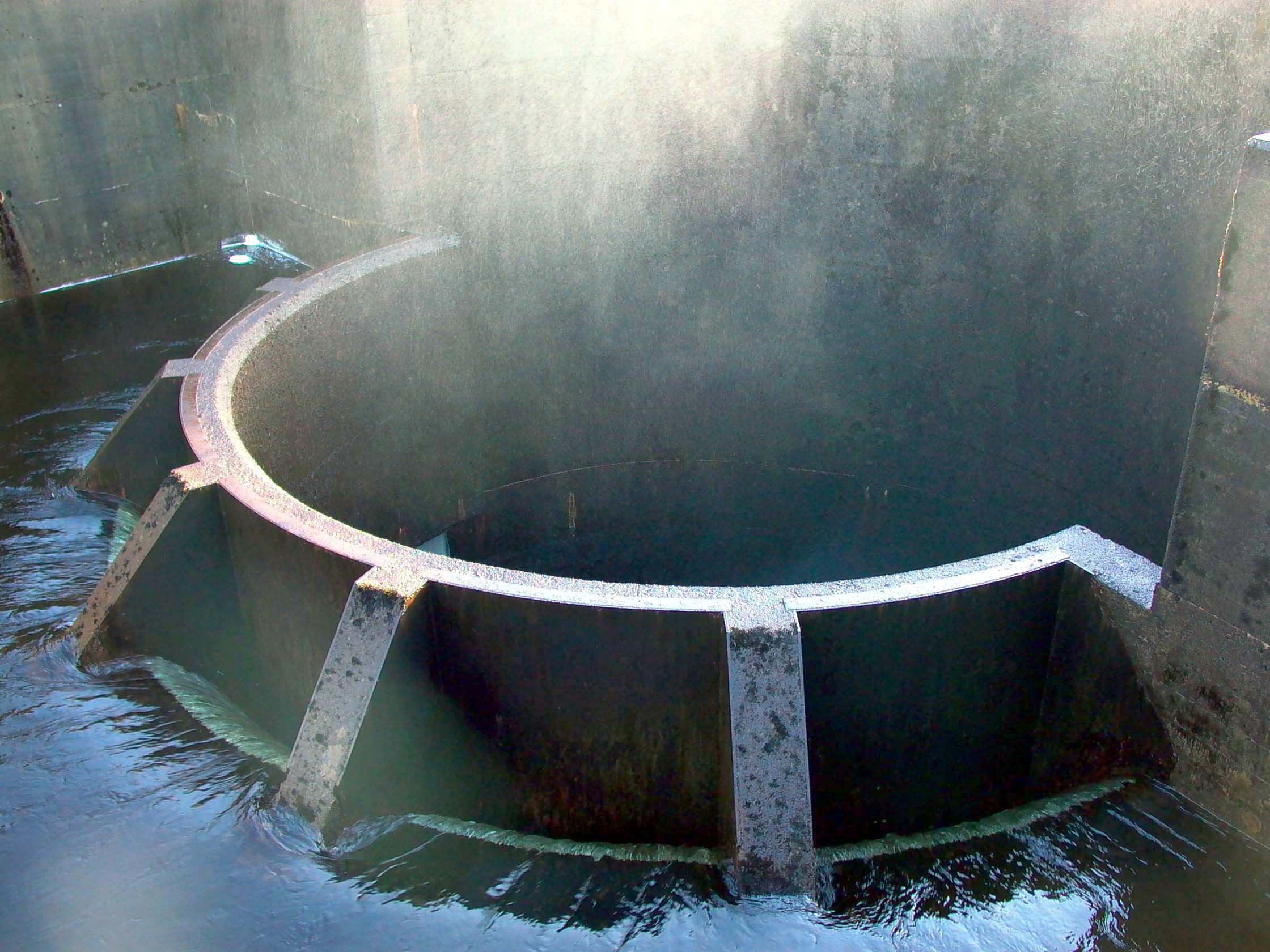

a concrete annulus: Photo by: Mike Ross ...and drops nearly 200ft straight down the shaft! Hence the noise and
spray: Photo by: Mike Ross The surge shaft, being so high above the treeline, commands a magnificent
view over Loch Earn. Would be a great spot for (summer) cottage - bet it's
a bastard of a place to get to in winter... Photo by: Mike Ross A little bit below the surge shaft, a branch off the track leads to an

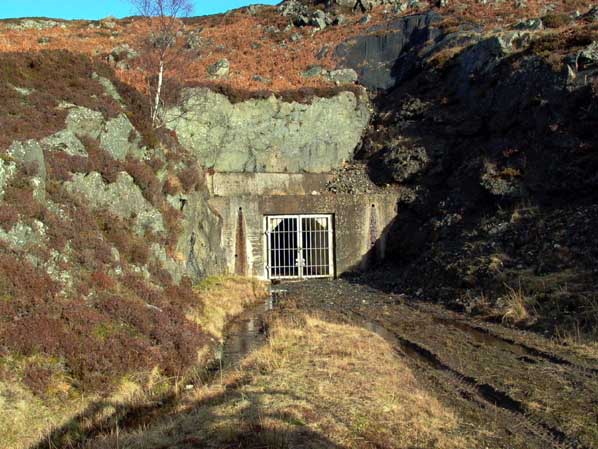

enormous spoil heap, and the hole the spoil came out of; a conventional
