St. Fillans Power Station - Access TunnelOS Grid Ref: NN 69045 2460 St. Fillans has a short, straight, free-slow tailrace tunnel. It discharges

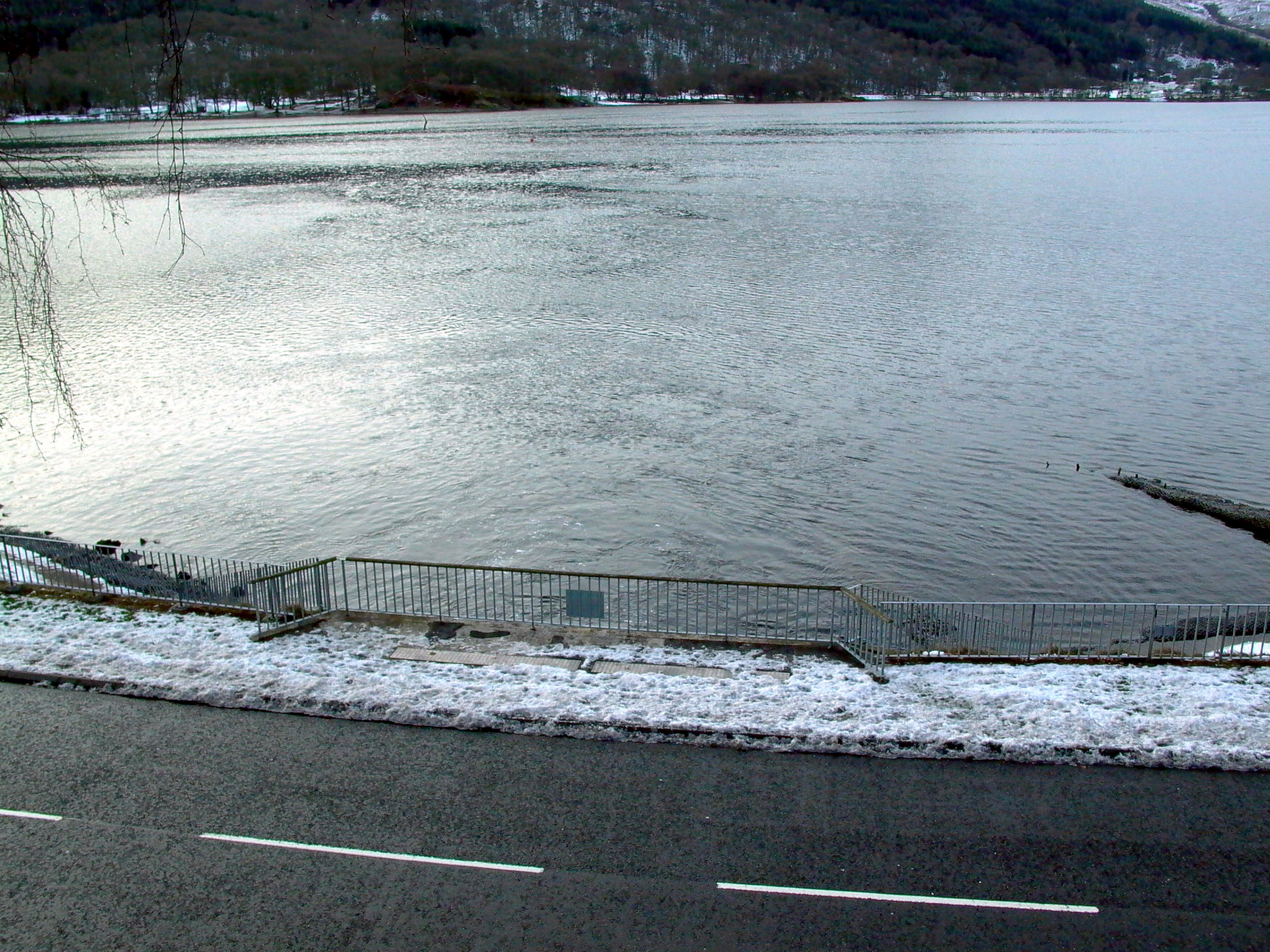

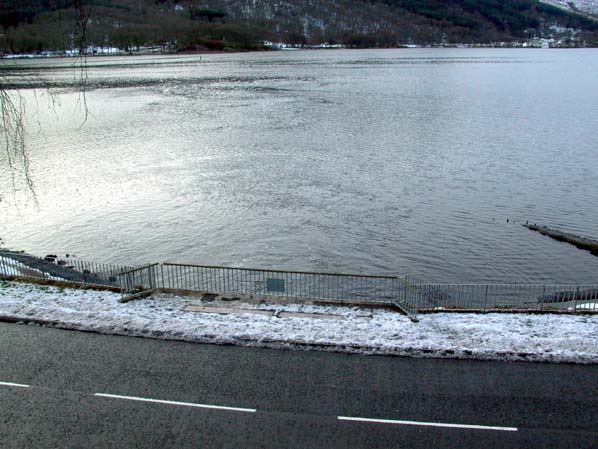

into Loch Earn immediately below the A85 road. A85 is in foreground of

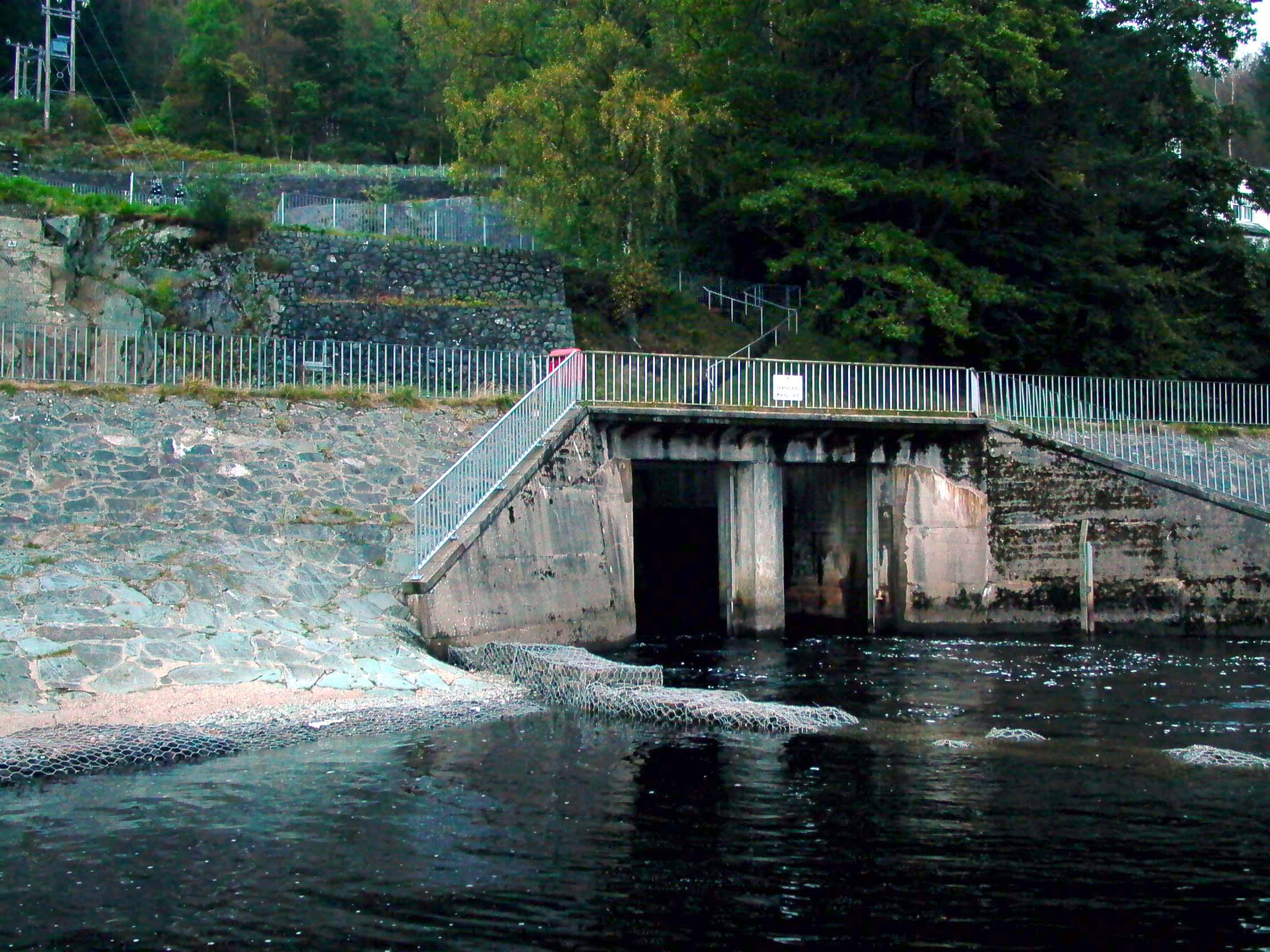

this shot, you can see the ripples in the loch from the tailrace: Photo by: Mike Ross Looked at from water level, it's a single tunnel with a central splitter
wall, with the A85 carried over the outfall on a bridge: Photo by: Mike Ross The tailrace can also be accessed from inside the power station. At the

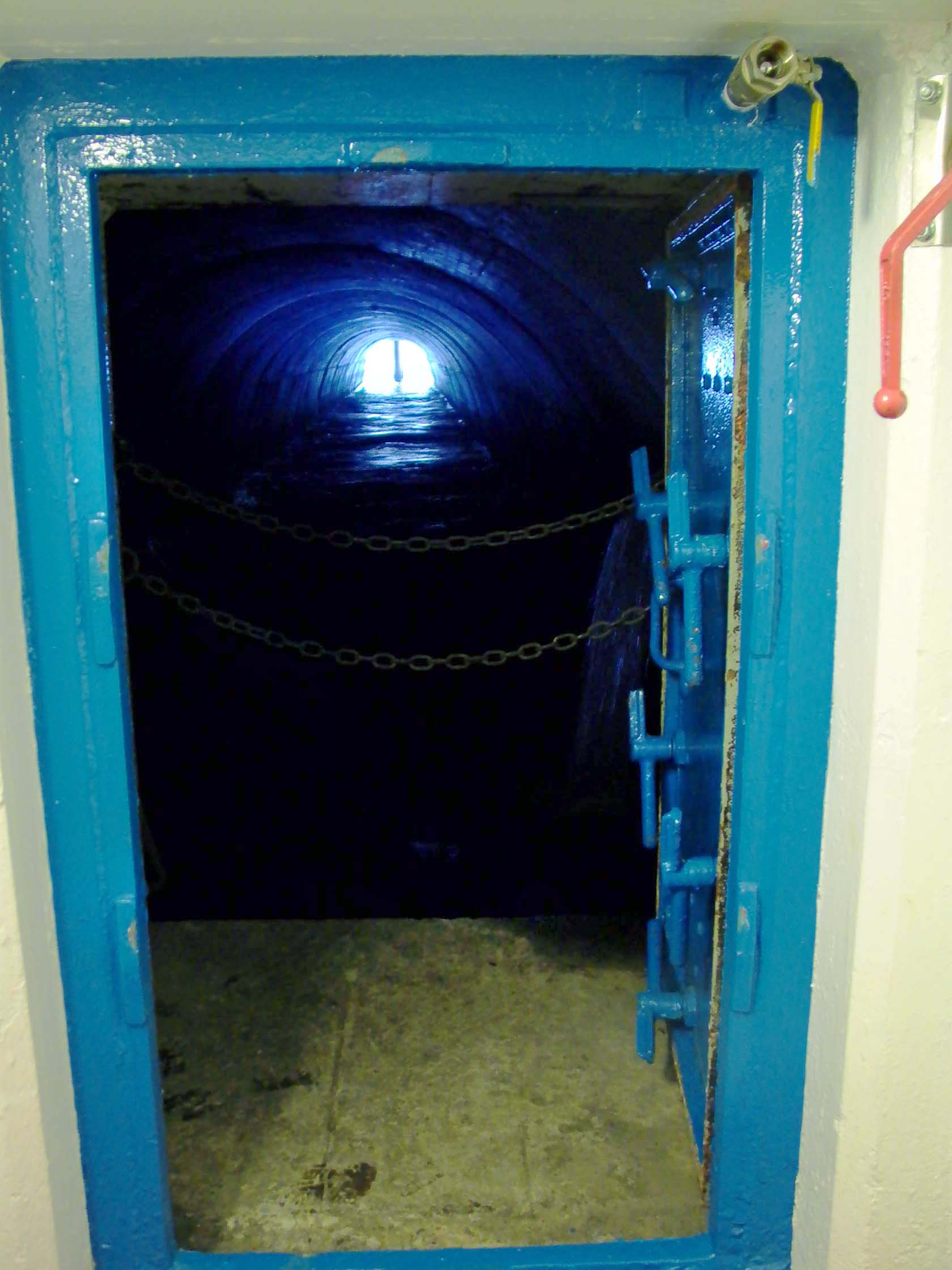

front of the turbine floor as few steps lead down to a watertight door: Photo by: Mike Ross Opening the watertight door give a view right down the tailrace tunnel

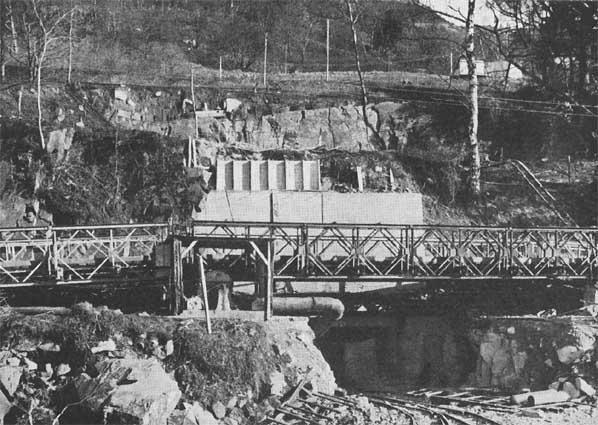

to the 'splitter' at the exit: Photo by: Mike Ross Finally one from the archives - tailrace outfall under construction, A85
carried on temporary bridge: Photo by: Scanned by Mike Ross, from Water Power Jamuary 1956 Home Page Last updated 22th November 2005 Style © 1998-2001 Subterranea Britannica Words and images © 2005 Michael J. Ross |
