Corestore Collection - Real terminals, emulated systems...



One particular form of technological hooliganism I like to indulge in is hooking 'vintage' terminals up to contemporary emulators - but only if I don't have the 'vintage' computer available! Some examples:

(you can click on any image to see the high-resolution original)




DEC VT52 hooked up to serial port of PC running TOPS-20 under KLH emulator under GNU/Linux.

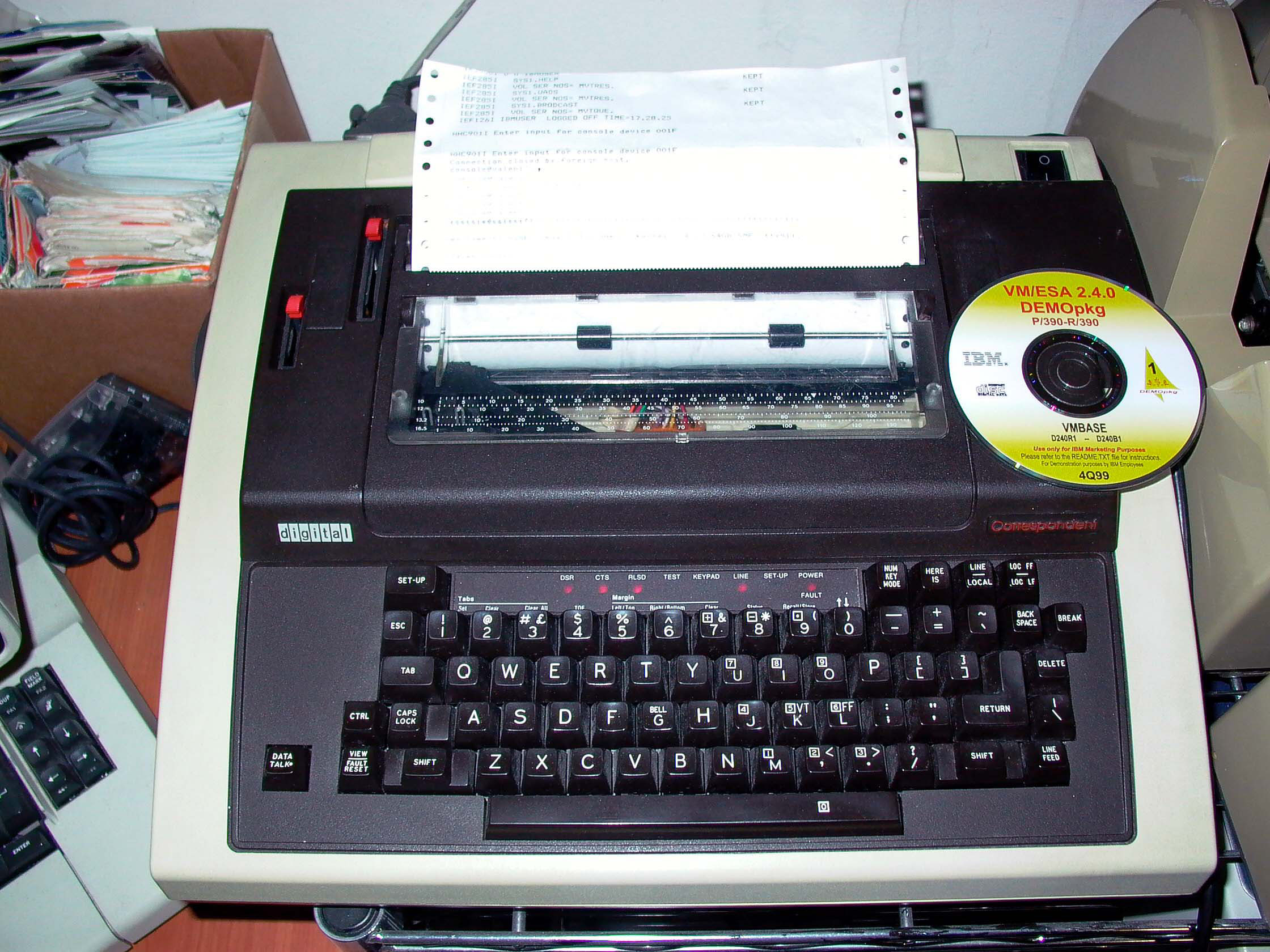

LA12 Decwriter hooked up to serial port of PC running OS/360 under Hercules emulator under GNU/Linux (nearest I could come to an IBM 1052 typewriter console!)

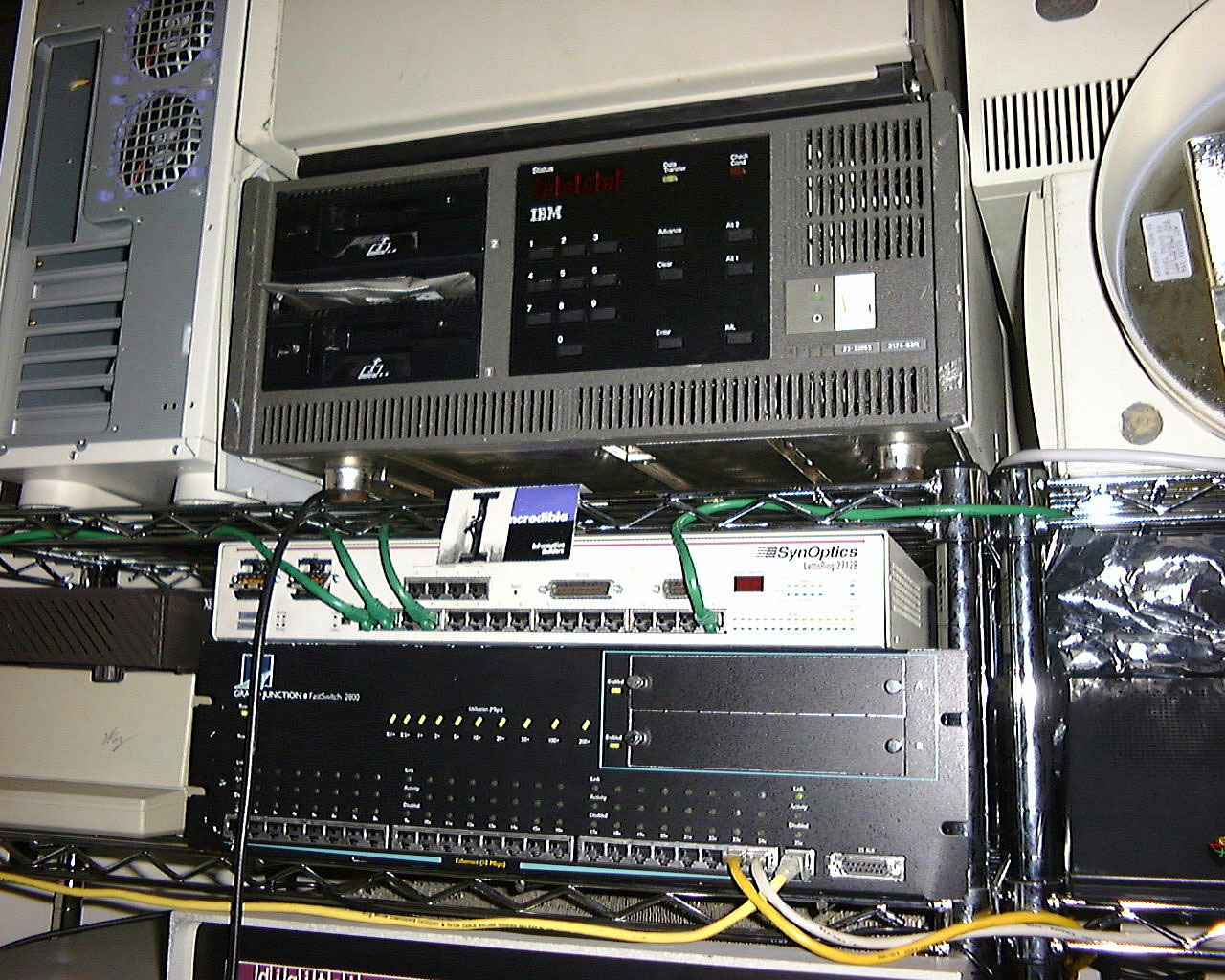

IBM 3174-63R Establishment Controller, used to connect 3270 coax terminals to mainframe via token-ring and SNA.

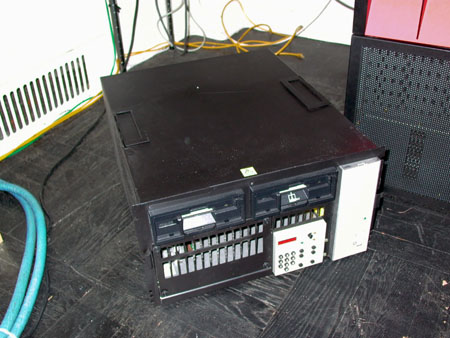

IBM 3174-23L Establishment Controller, used to connect 3270 coax terminals to mainframe via ESCON, parallel (Bus & Tag) channel, or ethernet, and to any system via ethernet and telnet/TN3270.

(telnet note: the latest and greatest 3174 microcode, version C6.4, allows the 3174 itself to act as a telnet client. This is how it is possible to telnet from a 3270 display without first logging-on to a mainframe)





IBM 3290 plasma display, with one session connected to MVS via 3174-63R.

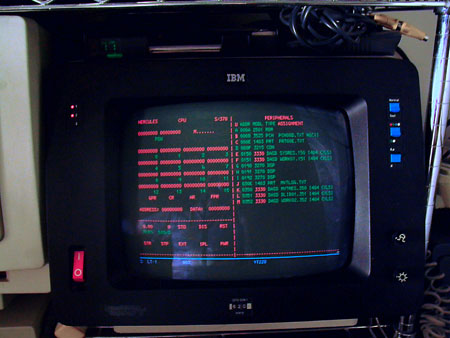

IBM 3279 functioning as the Hercules 'HMC' - connected to 3174-23L, and using telnet over ethernet to connect to PC running GNU/Linux, and starting Hercules in the normal fashion.

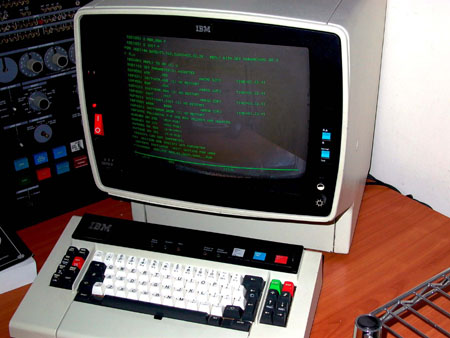

IBM 3278 functioning as MVS 3.8 console - connected to 3174-23L, using TN3270 over ethernet to connect to the console port of a Hercules session running under GNU/Linux.
