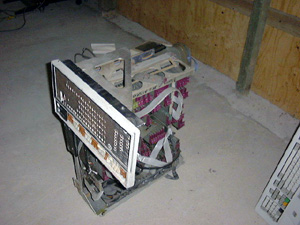

It came in two flavours; the rackmount model which everyone knows, and a much rarer standalone model which looked... wierd!

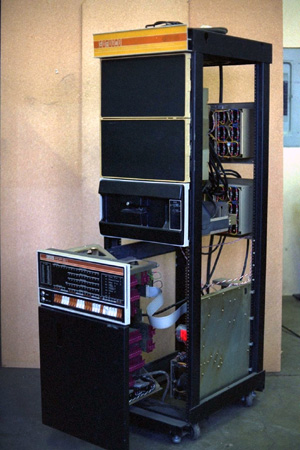

For some reason I'm very short on decent photographs of this system - the
above is what it's supposed to look like, if the photographer is competent!
An incompentent photographer produces results like this:

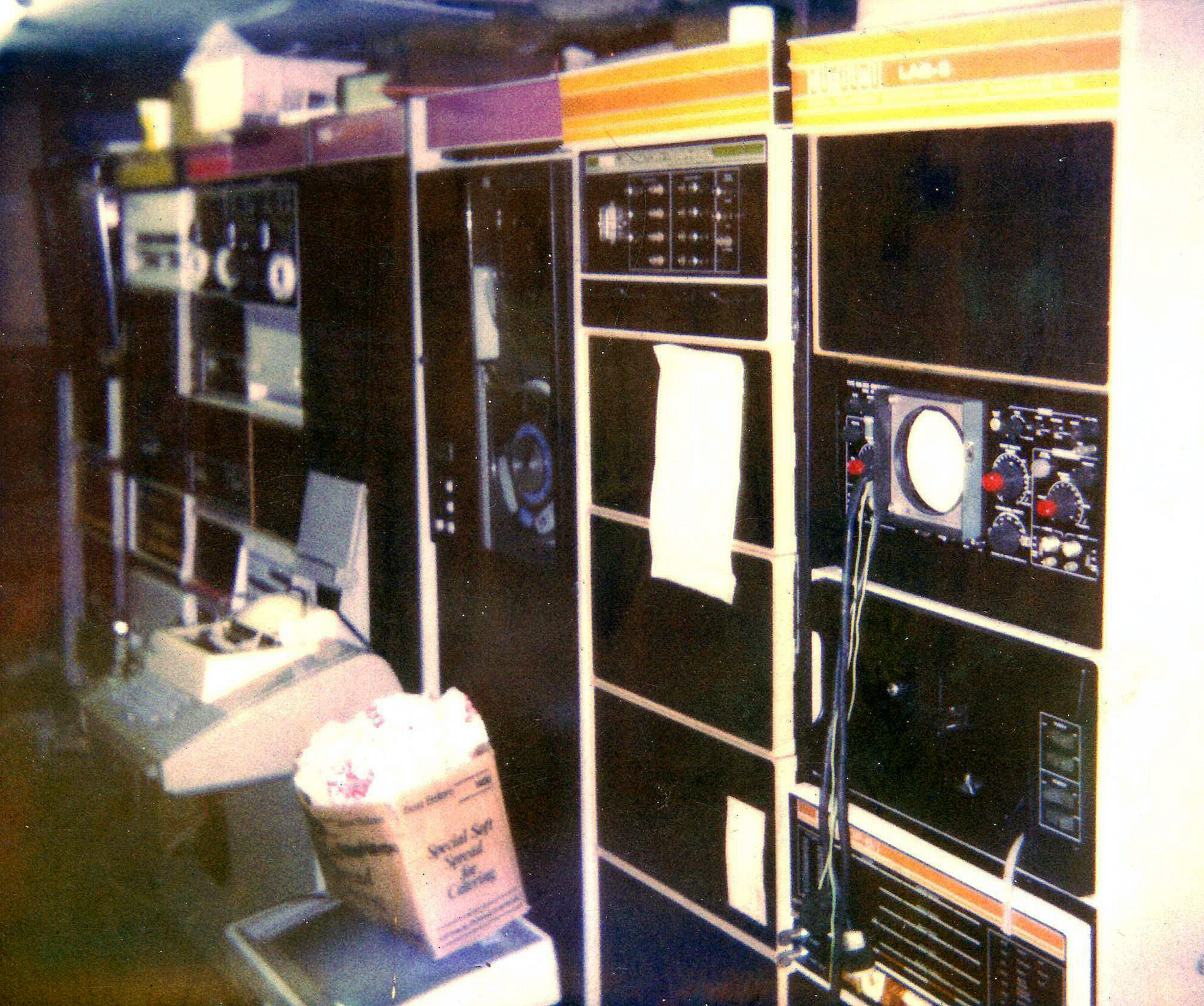

An old polaroid from the early days of the Corestore... in the foreground,
the two cabs of the 8/I - the second cab virtually empty, except for the
Lab/8 box in the top position. In the background, a couple of 8/e systems,
an 11/35, and an 11/70 - with assorted DECtapes and disks. On the floor,
an ASR 33 and the monitor from a Xerox 6085 workstation.

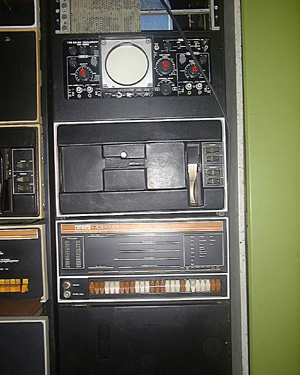

A slightly better shot of the front: front panel, PC04 paper tape reader/punch,
RM503 scope, and some interfacing stuff in the top.

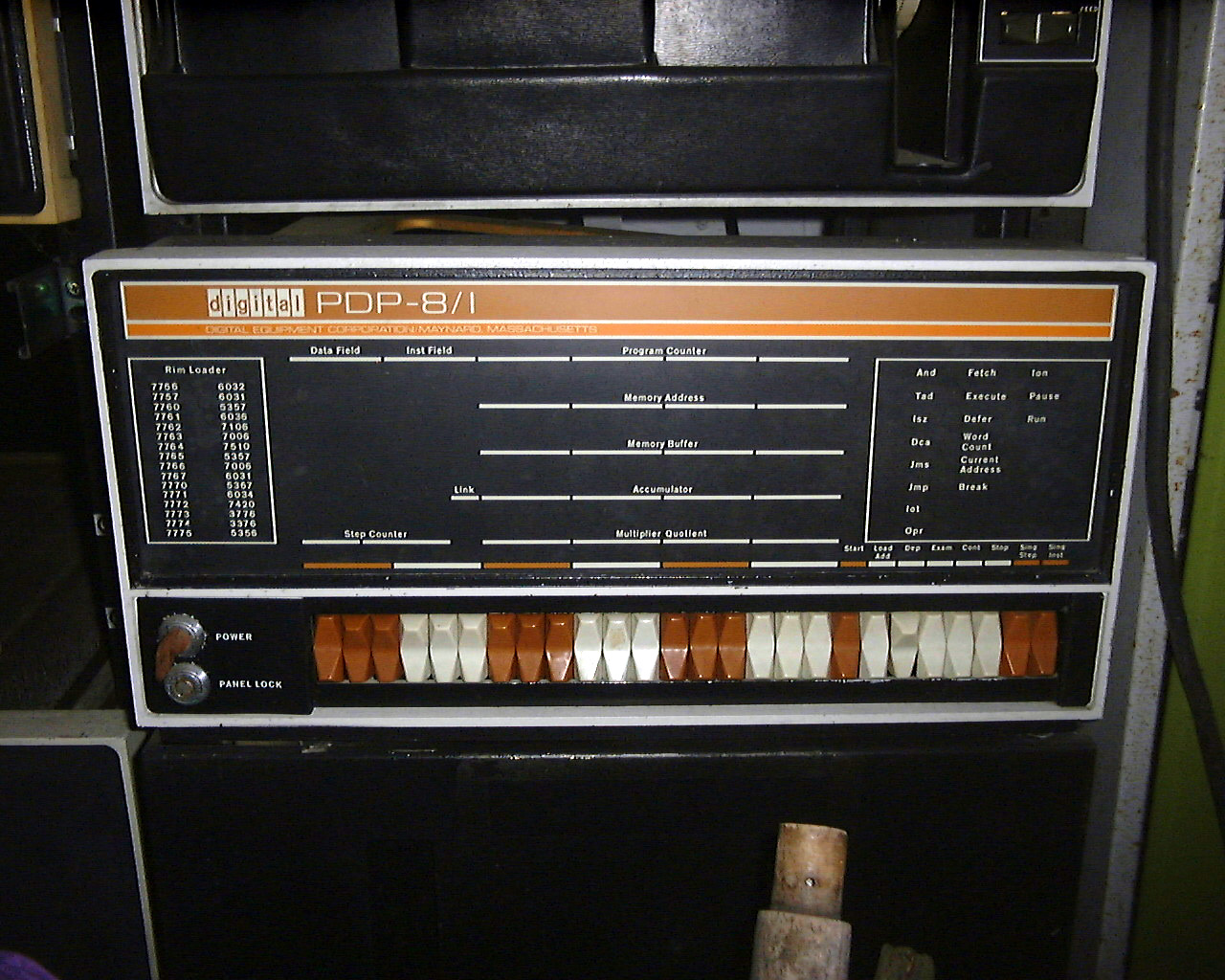

The front panel, complete with RIM loader text! A 'proper' front panel
with seperate rows of lights, so you can see PC, MA, MB, AC, MQ, instruction,
and major states - all at once. No silly pdp-8e knobs here!

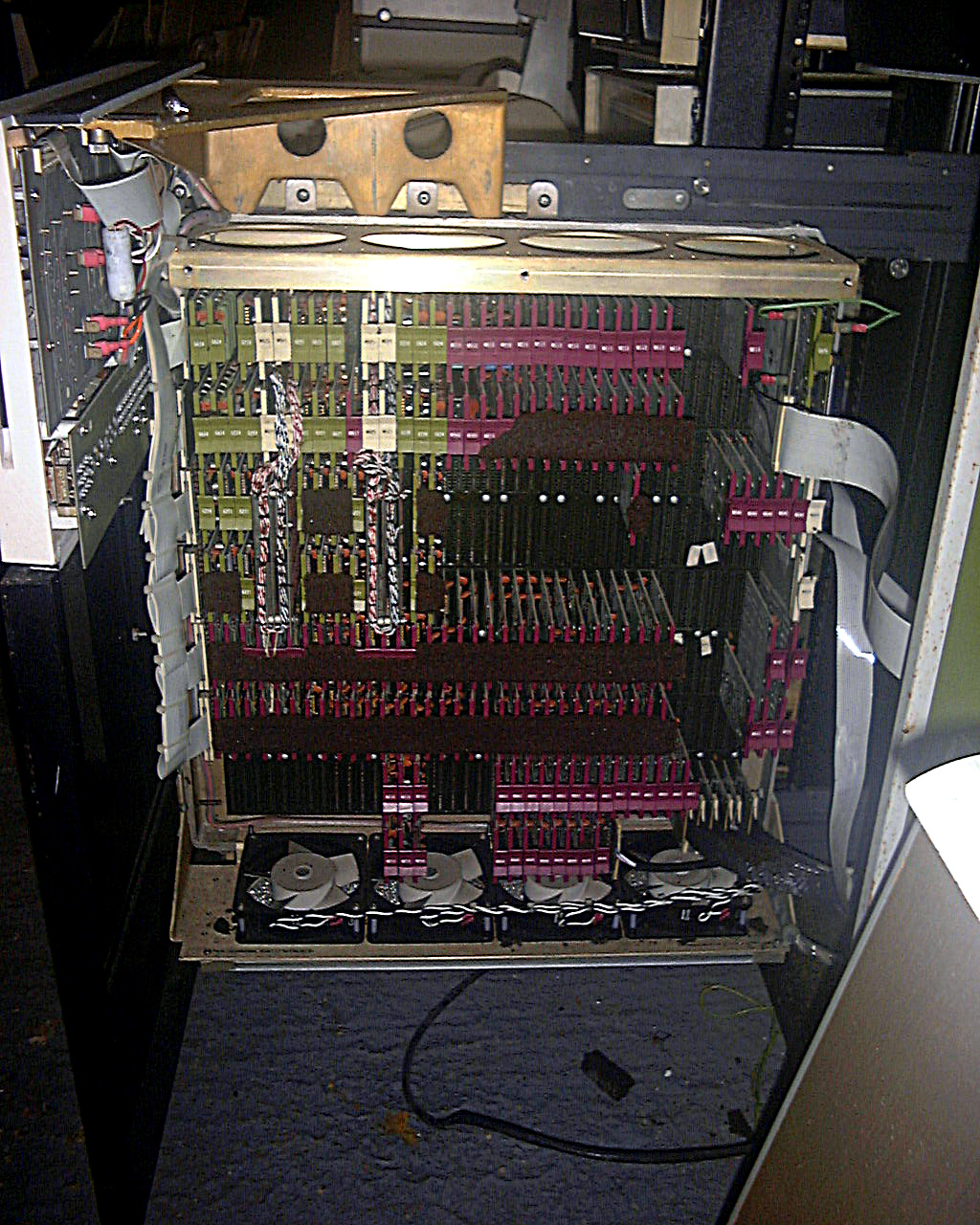

The entire system with the exception of the PSU slides out as a single
unit. Note the two 4k core stacks.
Hopefully some better pictures of this machine will be up soon!
This machine is in a 'lab-8' configuration, has a paper tape reader/punch,
and a data acquisition and display subsystem with a/d converters(in the
left rack) and an old Tektronic 503 'scope. It was used in Cambridge University
for physical chemistry research until I collected it in 1992.
It's currently in full working order, except for a recently blown bulb
on the paper tape reader which I haven't got round to replacing, and runs
very nicely - it's probably my most reliable machine! I've had various
diagnostics, Fortran and Focal (a 'programmable calculator' program) running
on it. I haven't quite figured out how to display stuff on the 'scope yet,
but it works fine as a pdp-8.
I could use any information about an 'auto single-step' circuit for
it, which would allow me to vary the machine speed from 1 instruction per
second to full speed - this ability was built-in on the 12 and 15, but
I believe a circuit for the 8I was published at some point.
When I picked up my first pdp-8/L from the Mersey Tunnel, where it had
been used to control the ventilation system, I also got a pdp-8/I - or
most of one. The chassis, backplane, and front panel were lying behind
the rack the 8/L was in. I was told it had been used simply as a convenient
rack for storing M-series modules!
In the last couple of days (8/2003), I think I've actually located a spare
8/I power supply... repair it, get the required modules into it, and hey
presto! I have a second 8/I :-)
There are quite a few other 8/Is out there...
http://www.pdp8.net/pdp8i/pdp8i.shtml David Gesswein has one... and a much better site than mine!
http://www.parse.com/~pdp8/pdp8i/restore.html Robert Krten has an excellent page on a restoration project
