Subterranea Scotia

Nant Power Station - Access Tunnel

Nant Power Station sign

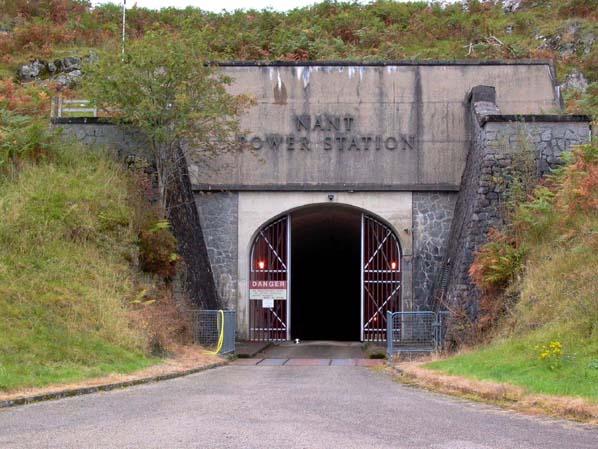

The access tunnel is 961ft long, 17ft wide, 15ft high. It runs straight for most of its length until it bends sharply on the final approach to the machine hall. In common with most such tunnels, it is unlined except at the portals. A rare sight: the lights are on, the gate is open, and someone is at home!

Nant power station - portal

Photo: Nant power station - portal
Photo by: Mike Ross

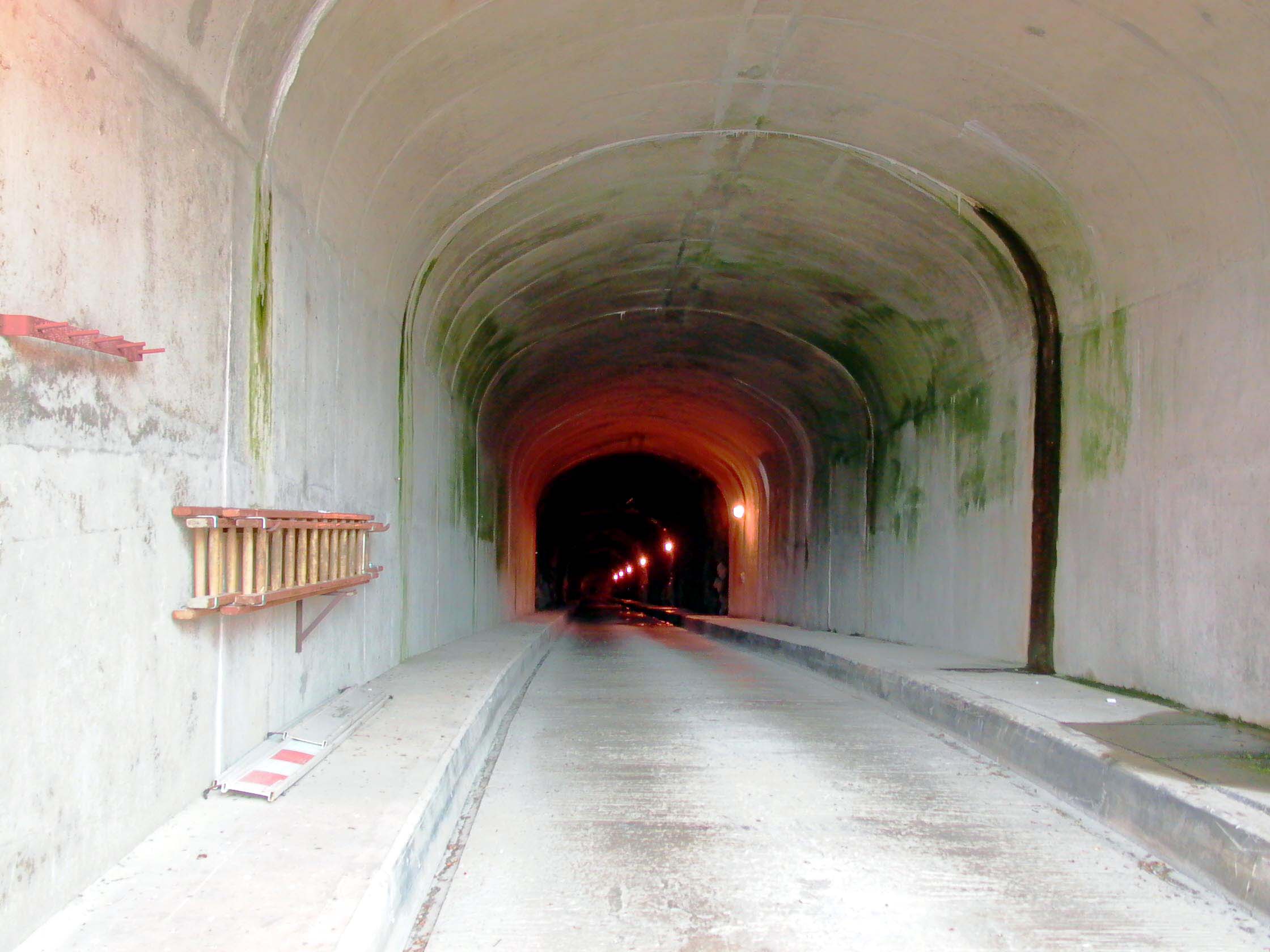

Looking down from the portal, the lights recede into the distance

Nant power station - access tunnel

Photo: Nant power station - access tunnel
Photo by: Mike Ross

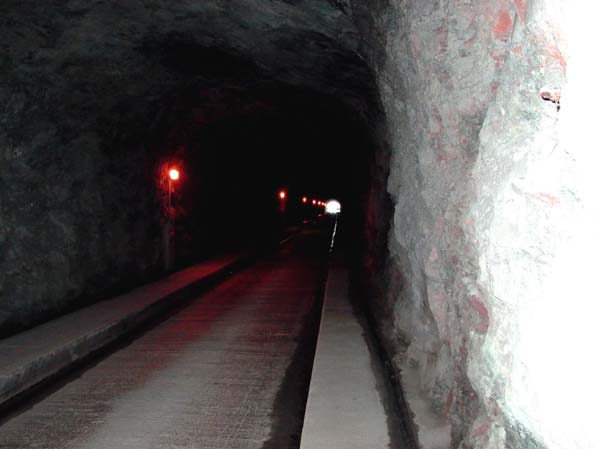

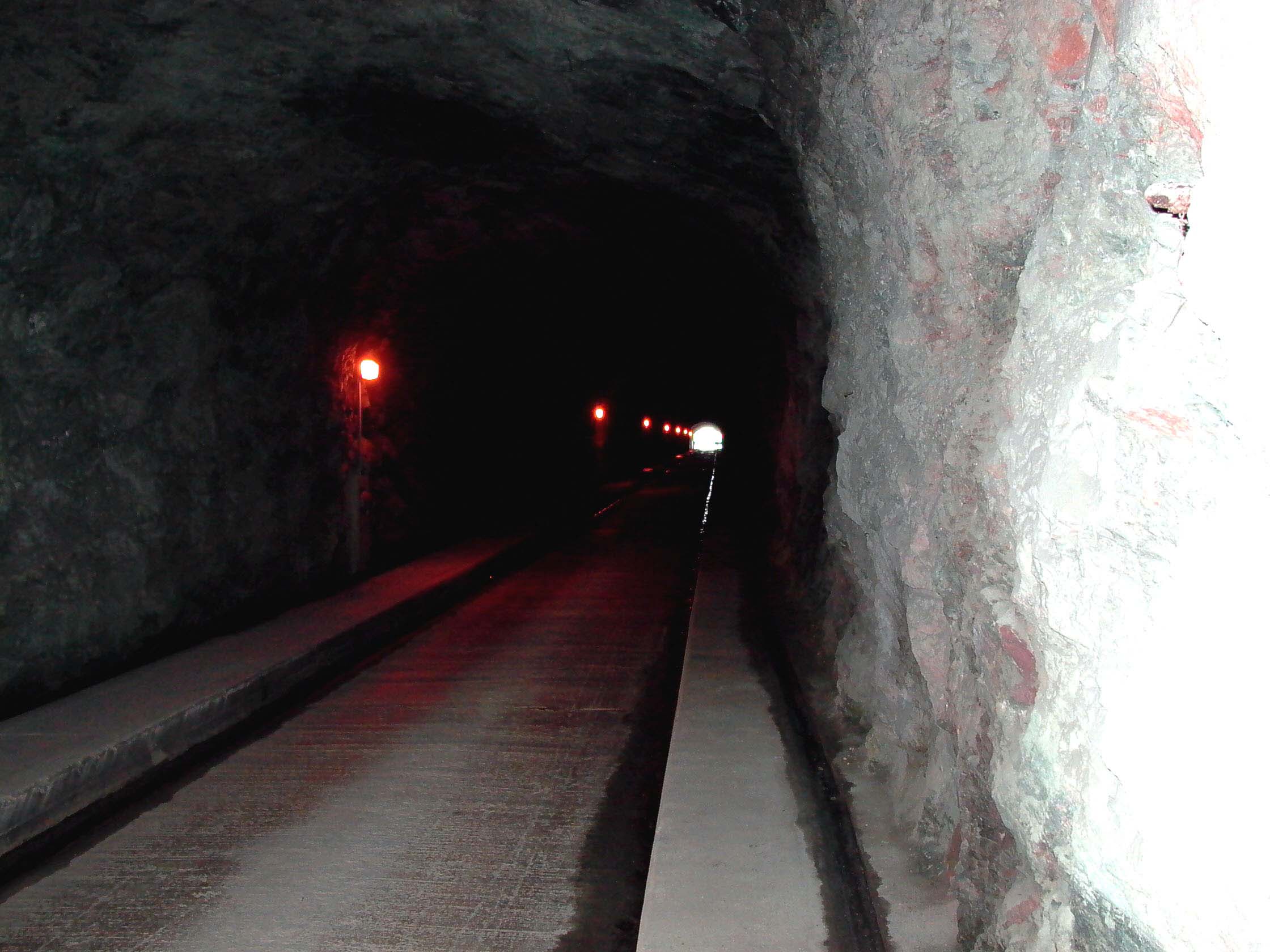

Looking back up the access tunnel from the bend, daylight visible:

Nant power station - access tunnel

Photo: Nant power station - access tunnel
Photo by: Mike Ross

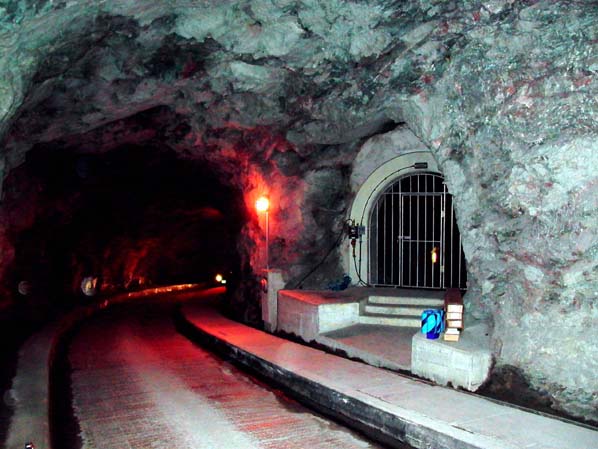

On the right-hand side of the tunnel, at the start of the bend, a gated adit slopes down. This gives access to the tailrace and draft tubes, see this page for details:

Nant power station - entrance to draft tube adit

Photo: Nant power station - entrance to draft tube adit
Photo by: Mike Ross

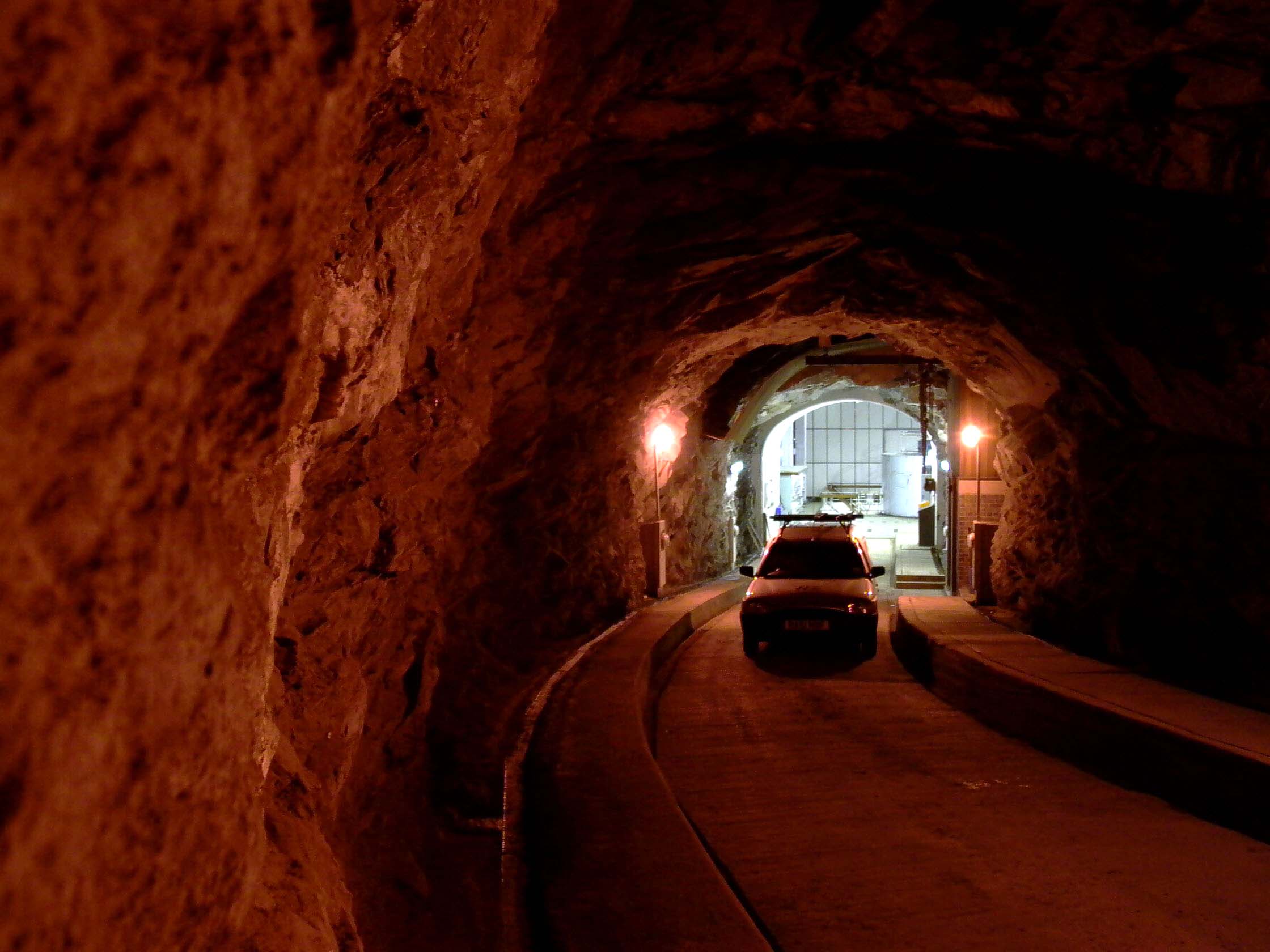

Around the bend, the tunnel approaches the brightly-lit machine hall:

Nant power station - access tunnel

Photo: Nant power station - access tunnel
Photo by: Mike Ross

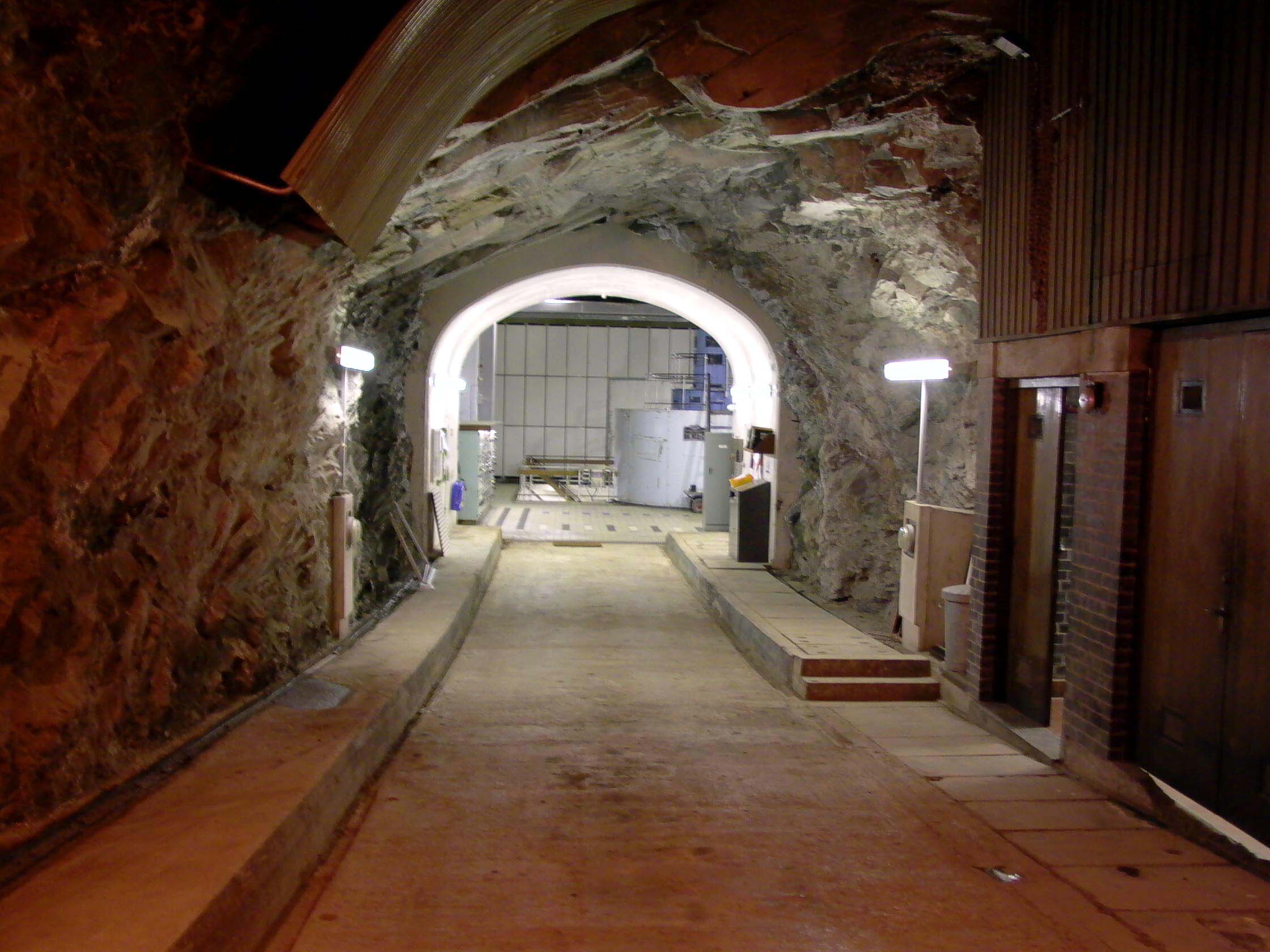

On the final approach to the machine hall, a couple of chambers have been excavated on the right - switchroom, battery room, office/mess, and lavatory:

Nant power station - access tunnel

Photo: Nant power station - access tunnel
Photo by: Mike Ross
